Product Overview

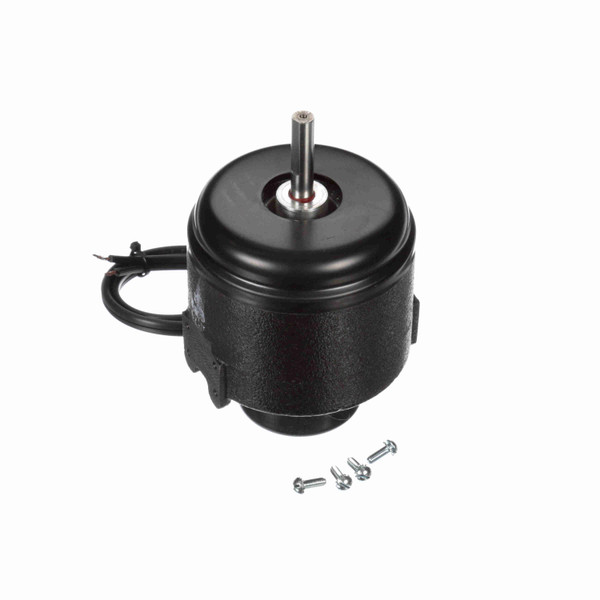

Century 261 50 WATT Refrigeration Motor 1500 RPM 230 Volts Unit Bearing
KEY FEATURES
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 3/8" Diameter Shaft with Flat
- 22" Leads
- Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
Nameplate Specifications
| Phase: | 1 | Output Watts: | 50 W |
| Voltage: | 230 V | Speed: | 1500 rpm |
| Service Factor: | 1 | Frame: | UNIT BEARING |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 0.85 A | Duty: | Continuous |
| Insulation Class: | A | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Lead End |
| Mounting: | 2 BOSS/OSE 3 HOLES | Drive End Bearing: | Unit |
| Opp Drive End Bearing: | Unit | Frame Material: | Cast Iron |
| Shaft Type: | Flat | Frame Length: | 4.79 in |
| Shaft Diameter: | 0.375 in | Shaft Extension: | 1.6 in |
General Specifications
| UPC: | 786674006301 | Weight: | 6.00 LB |
| Packaged Length: | 9.39 IN | Packaged Width: | 6.87 IN |
| Packaged Height: | 6.87 IN | HTC: | 8501.40.2040 |
