Product Overview

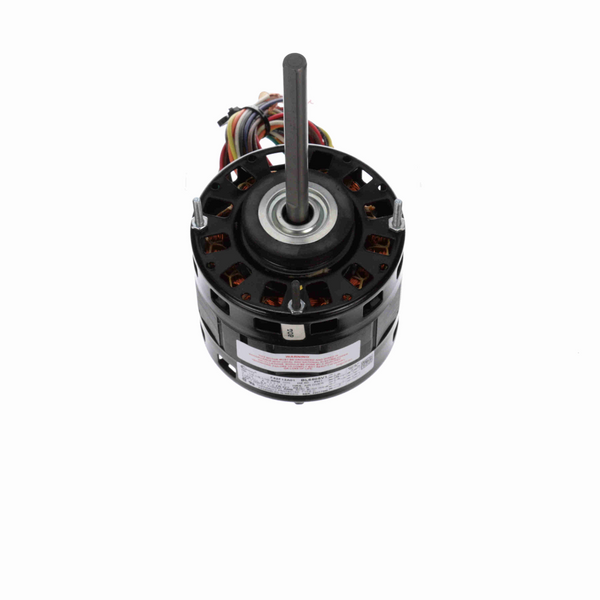

Century B6507V1 Fan and Blower Motor 1 Ph 60 Hz 230 V 1075 RPM 42 Frame
KEY FEATURES
- Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
- Downloads:
- B6507V1 Data Pack
General Specifications
| UPC: | 786674012715 | Weight: | 9.00 LB |
| Packaged Length: | 11 IN | Packaged Width: | 7.5 IN |
| Packaged Height: | 7 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/5-1/6-1/10 Hp | Output KW: | 0.15 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 1.3,0.9,0.7 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 42Y | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Resilient Rings | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | N/A | Shaft Type: | Flat |
| Overall Length: | 9.92 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 5.5 in |
