Product Overview

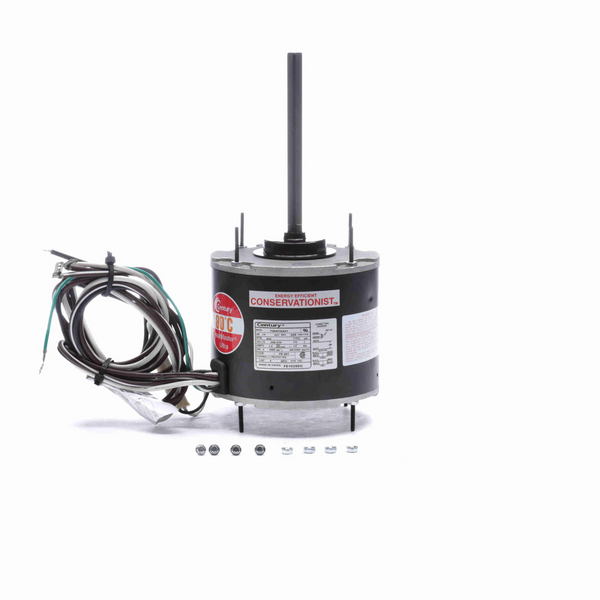

Century FE1028SF HEATMASTER 1/4 HP Condenser Fan Motor 825 RPM 208-230 Volts
KEY FEATURES
- HeatMaster - Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft and Lead End, Mounting Holes in Shell, Belly Band
- Downloads:
- FE1028SF Data Pack
General Specifications
| UPC: | 786674020765 | Weight: | 15.00 LB |
| Packaged Length: | 13.78 IN | Packaged Width: | 6.41 IN |
| Packaged Height: | 6.81 IN |
Nameplate Specifications
| Output HP: | 1/4 Hp | Output KW: | 0.19 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 1.5 A | Speed: | 825 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | F |
| Frame: | 48 | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 70 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 8 | Rotation: | Reversible |
| Mounting: | Extended Studs | Motor Orientation: | Any |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Double Flat |
| Overall Length: | 12.00 in | Frame Length: | 4.00 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 6.5 in |
