Product Overview

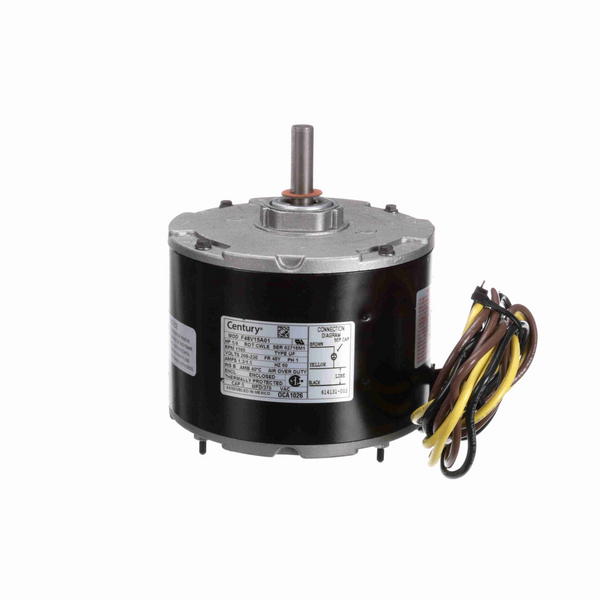

Century OCA1026 OEM Replacement Motor 1/4 HP 1 Ph 60 Hz 208-230 V 1100 RPM 1 Speed
KEY FEATURES
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 44" Leads with Quick Connect Terminals
- Extended Studs Opposite Shaft End, Belly Band Mount
- Downloads:
- OCA1026 Data Pack
General Specifications
| UPC: | 786674027238 | Weight: | 12.00 LB |
| Packaged Length: | 8.87 IN | Packaged Width: | 6.81 IN |
| Packaged Height: | 6.81 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/4 Hp | Output KW: | 0.19 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 1.3/1.5 A | Speed: | 1100 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 48Y | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Clockwise Lead End |
| Mounting: | Extended Studs | Motor Orientation: | Any |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 6.53 in | Frame Length: | 3.63 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 2.1 in |
