Product Overview

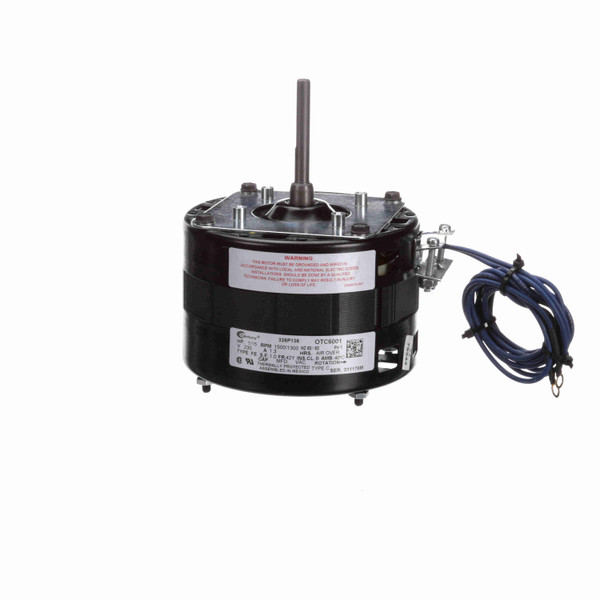

Century OTC6001 1/15 HP OEM Replacement Motor, 1500/1300 RPM, 230 Volts, 42 Frame, OAO
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 31" Leads with #10 Eyelet
- Four #8-32 Threaded Standoff on a 2.84 Bolt Circle Shaft End
General Specifications
| UPC: | 786674028532 | Weight: | 8 LB |
| Packaged Length: | 8.87 IN | Packaged Width: | 5.81 IN |
| Packaged Height: | 5.81 IN |
Nameplate Specifications
| Output HP: | 1/15 Hp | Output KW: | 0.05 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 1.3 A | Speed: | 1500/1300 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 42Y | Enclosure: | Open Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Lead End |
| Mounting: | Special | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Na | Shaft Type: | Flat |
| Overall Length: | 6.15 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | .3 X 2.8 in |
