Product Overview

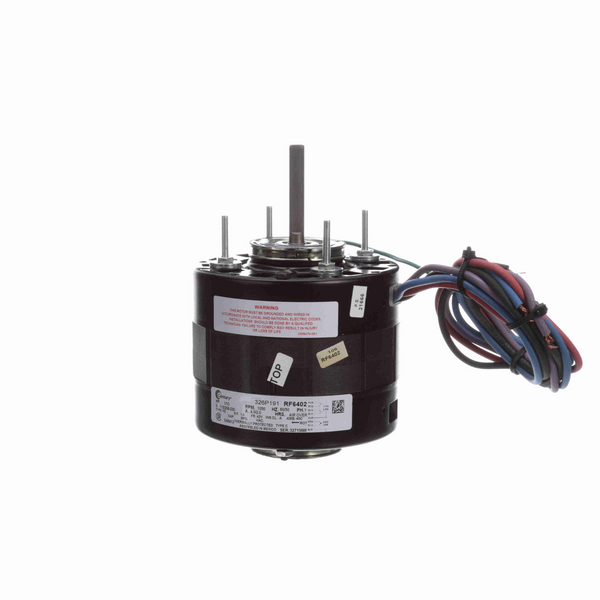

Century RF6402 Refrigeration Motor 1/10 HP 1 Ph 60 Hz 115/208-230 V 1050 RPM 1 Speed 42 Frame
KEY FEATURES
- Refrigeration - Unit Heater - Space Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Lead End and Opposite Lead End End-Frame, Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat, 1/2" Shaft Adaptor Included
- 29" Leads
- Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Opposite Shaft End, Resilient Base Mounting Clamps, Mounting Ring Adaptors, and Hex Nuts Included
- Downloads:
- RF6402 Data Pack
General Specifications
| UPC: | 786674030610 | Weight: | 11.00 LB |
| Packaged Length: | 8.87 IN | Packaged Width: | 5.81 IN |
| Packaged Height: | 5.81 IN | HTC: | 8501.40.2040 |
| Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/10 Hp | Output KW: | 0.07 kW |
| Frequency: | 60 Hz | Voltage: | 115/208-230 V |
| Current: | 4.0/2.0 A | Speed: | 1050 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | A |
| Frame: | 42Y | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | No | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Clockwise Lead End |
| Mounting: | Extended Studs | Motor Orientation: | Any |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Na | Shaft Type: | Flat |
| Overall Length: | 7.17 in | Shaft Diameter: | 0.375 in |
| Shaft Extension: | 2.25 in |
