UEI ATL55 CAT IV Test Leads

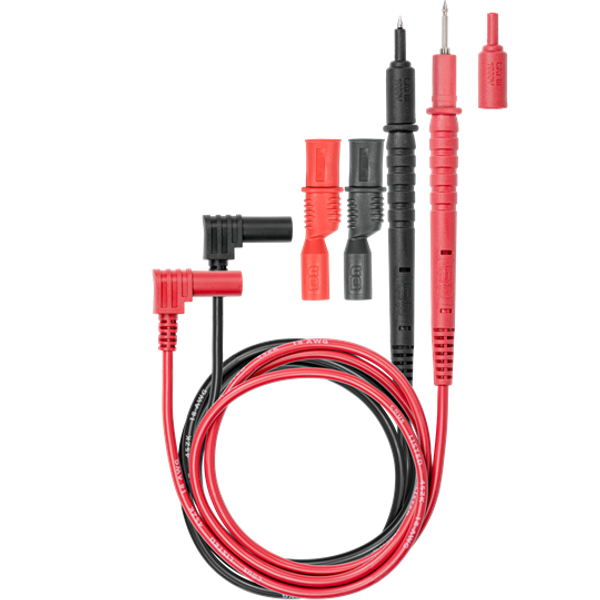

The UEi ATL55 is a replacement test lead set with right-angle connections, standard insulation, and an overall length of 42 inches. Each set includes threaded alligator clips for hands-free testing and a pair of test lead protective cap shields to reduce the exposed tip length during CAT IV testing.

These leads are UL listed and safety rated at CAT IV 600V 10A / CAT III 1000V (with protective cap shields), and CAT II 1000V 10A (without the protective cap shields).

The ATL55 fit most industry standard meters with 4mm input jacks. The lead ends are right-angle shrouded banana clips with a shroud length of 17mm and work with the following UEi products:

Current Products
DL369, DL379B, DL389B, DL569, DL579, DM505, DM515, DM525, IRT803, IRT807

Retired Products
DL279, DL289, DL379, DL389, DL419, DL429B, DL469, DL479, DL489, DL269, DM300, DM300A, DM310, DM383, DM383B, DM384, DM391, DM393, DM400, DM410, DM420, DM520, DM600, IRT3, UTL261, UTL291, UTL33T, UTLDM1, UTLDM2
