Product Overview

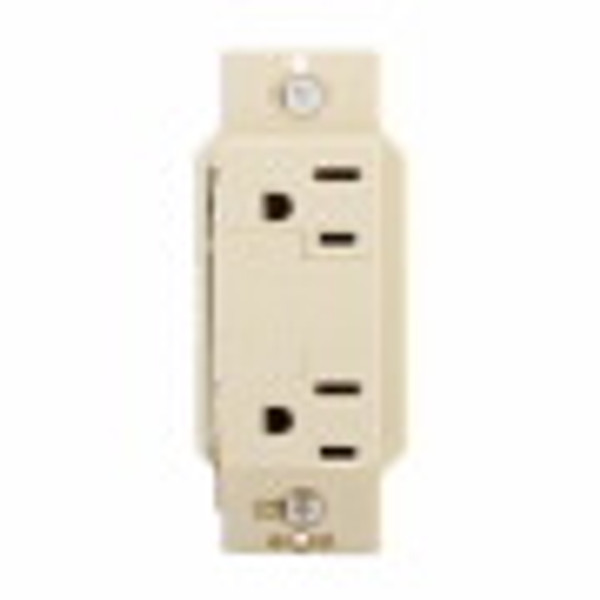

Eaton Wiring Devices 1208V TVSS Recp Duplex 15A 125V SurgeBloc Ivory
Ideal for protecting sensitive electronic equipment, Eaton's Arrow Hart point-of-use receptacles provide branch circuit surge protection that panel-mounted devices alone cannot. Advanced diagnostic features include LED indicators to verify surge protection and ground wiring. Certain models are available with audible alarm signaling when surge protection has expired. These receptacles are also available in hospital and commercial grades with isolated ground versions.
General specifications
Product Name
Eaton SurgeBloc protection receptacle
Catalog Number
1208V
UPC
032664570865
Product Length/Depth
1.4 IN
Product Height
3.81 IN
Product Width
1.3 IN
Product Weight
.29 LB
Certifications
cULus Listed
Product specifications
Special features
Audible alarm, auto-ground
Number of receptacles
2
Color
Ivory
Device type
Straight blade
Face/body material
Polycarbonate top & bottom
Wiring method
Wire leads
Material
Thermoplastic
Allowable wire size
Standard 6" #12 AWG leads
Amperage Rating
15A
Number Of Poles
Two-pole
Contact material
Brass
Type
SurgeBloc protection receptacle
Joules
340J
Device grade
Commercial
NEMA configuration
5-15R
Style type
Duplex
Operating Temperature
0° to 40°C
Number of wires
Three-wire
Receptacle type
Two-pole, three-wire, grounding
Voltage rating
125 V
Application
Commercial
