Product Overview

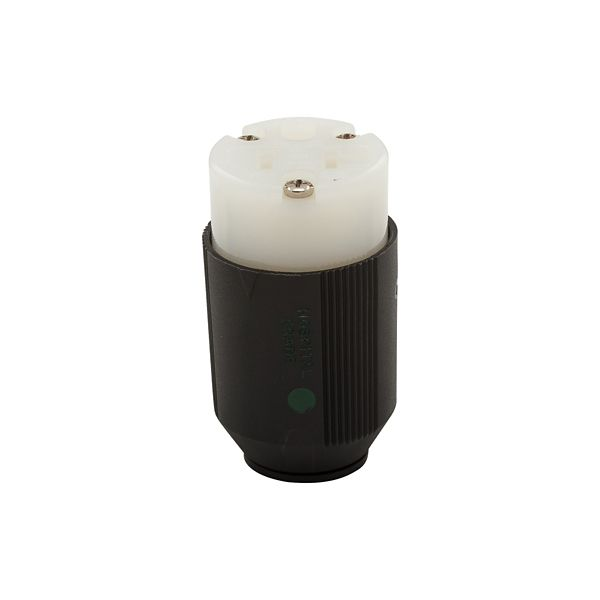

Eaton Wiring Devices 5369NHG Conn HG 20A 125V 2P3W Str AutoGrip BW
Eaton Arrow Hart auto grip hospital grade straight blade connector, #16-12 AWG, 20A, Industrial, 125V, Back wire, Black and white, Brass, Thermoplastic, 5-20R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
With a variety of styles including safety grip and auto grip, these devices are designed to install quickly and easily and provide reliable performance in tough industrial environments. Arrow Hart’s hospital and specification grade plug and connectors are built to meet and exceed UL federal specification and hospital grade testing. (B-2)
| Allowable Wire Size | #16-12 AWG |
| Amperage Rating | 20 A |
| Application | Industrial |
| Color | White | Black |
| Connection Type | Screw |
| Contact Material | Brass |
| Cord range | 0.33-0.66" in diameter |
| Design Type | Straight blade |
| Device Grade | Extra heavy-duty hospital grade |
| Device Type | Connector |
| Face/Body Material | Thermoplastic |
| Material | Nylon |
| Nema Configuration | 5-20R |
| Number Of Poles | Two-pole |
| Number Of Wires | 3 |
| Packaging type | Core pack |
| Receptacle Type | Two-pole, three-wire, grounding |
| Style Type | Straight body |
| Torque rating | 14 lbf-inch |
| Type | Connector |
| Voltage Rating | 125V |
| Wiring Method | Back wire |
| Length | 4.25 IN |
| Width | 2 IN |
| Height | 1.75 IN |
| Volume | 14.875 CI |
| Weight | 0.209 LB |
| Length | 4.25 IN |
| Width | 2 IN |
| Height | 1.75 IN |
|
