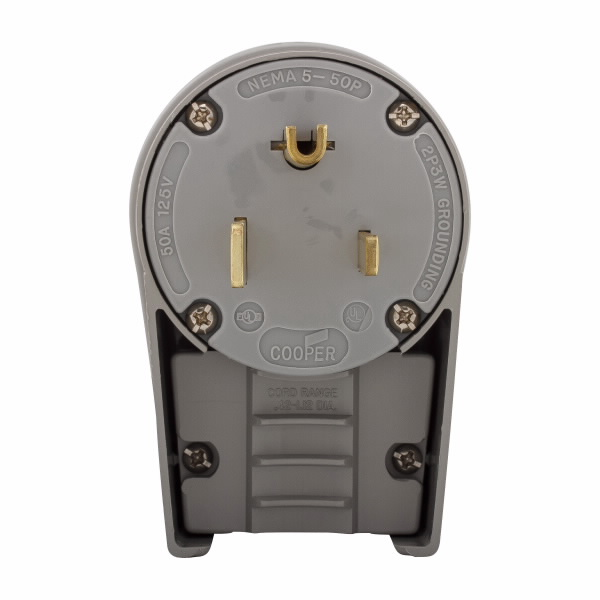

Eaton Arrow Hart extra heavy-duty angled plug , #12-4 AWG, 50A, Industrial, 125V, Back wire, Gray, Brass, Nylon, 5-50P, Two-pole, three-wire, grounding, Screw, Nylon, Core pack
Heavy duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
Allowable Wire Size |
#12-4 AWG |
Amperage Rating |
50 A |
Application |
Industrial |
Color |
Gray |
Connection Type |
Screw |
Contact Material |
Brass |
Design Type |
Straight blade |
Device Grade |
Extra heavy-duty industrial specification grade |
Device Type |
Plug |
Face/Body Material |
Nylon |
Material |
Nylon |
Nema Configuration |
5-50P |
Number Of Poles |
Two-pole |
Number Of Wires |
3 |
Packaging type |
Core pack |
Receptacle Type |
Two-pole, three-wire, grounding |
Style Type |
Power, Angled body |
Torque rating |
30-35 lbf-inch |
Type |
Angled plug |
Voltage Rating |
125V |
Wiring Method |
Back wire |
Length |
6.938 IN |
Width |
3.61 IN |
Height |
3.375 IN |
Volume |
84.531 CI |
Weight |
1.05 LB |
Length |
6.938 IN |
Width |
3.61 IN |
Height |
3.375 IN |
|
- Refer to warranty document.
|
