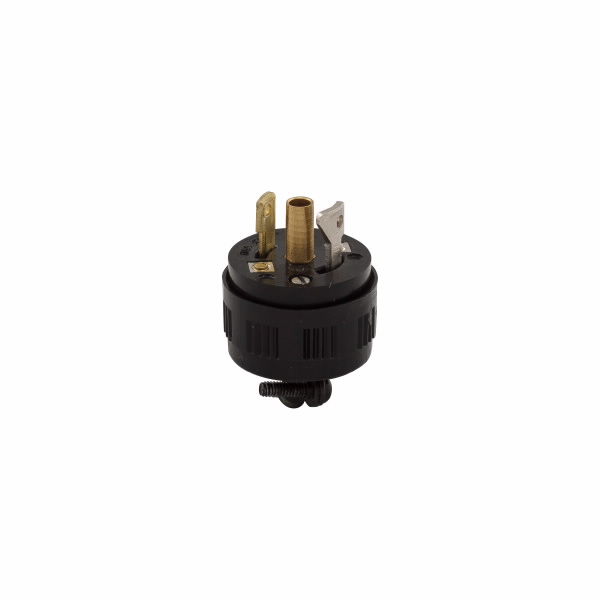

Eaton safety grip locking plug, #16-12 AWG, 15A, Industrial, 125V, Back wiring, Black, Midget, ML2, Two-pole, Three-wire, Phenolic, 0.28 to 0.42 in
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
| Allowable Wire Size |
#16-12 AWG |
| Amperage Rating |
15 A |
| Application |
Industrial |
| Color |
Black |
| Contact Material |
Brass |
| Cord Diameter |
0.28-0.42 in (7.1-10.7 mm) |
| Design Type |
Midget locking plug |
| Device Grade |
Heavy-duty specification grade |
| Face/Body Material |
Nylon |
| Material |
Phenolic |
| Nema Configuration |
ML2 |
| Number Of Poles |
Two-pole |
| Number Of Wires |
Grounding | 3 |
| Operating Temperature |
-40 to 95 °C (-40 to 203 °F) |
| Special Features |
Midget locking |
| Type |
Locking plug |
| Voltage Rating |
125 V |
| Wiring Method |
Side |
| Length |
6.25 IN |
| Width |
3 IN |
| Height |
3.25 IN |
| Volume |
60.938 CI |
| Weight |
1.05 LB |
| Length |
6.25 IN |
| Width |
3 IN |
| Height |
3.25 IN |
| Weight |
1.05 LB |
|
|
- Refer to warranty document.
|
|
|
