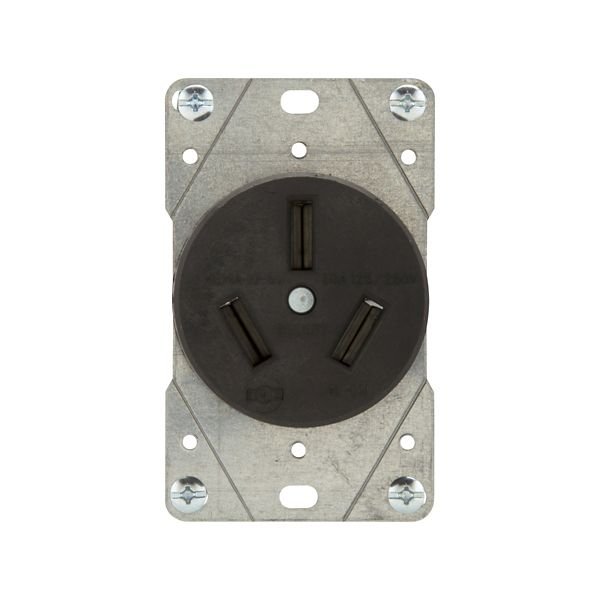

Eaton power device receptacle, Range, #12 - 4 AWG, 50A, Flush, 125/250V, Back, Black, NEMA 10-50R, Three-pole, Three-wire, Three-pole, three-wire, non grounding, Screw, Glass-filled nylon, Power
Heavy duty design and construction make Eaton's Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
Allowable Wire Size |
#12-4 AWG |
Amperage Rating |
50 A |
Color |
Black |
Connection Type |
Screw |
Design Type |
Receptacle |
Material |
Glass filled nylon |
Mounting method |
Flush |
Mounting Type |
Flush |
Nema Configuration |
10-50R |
Number Of Poles |
Three-pole |
Number Of Wires |
3 |
Receptacle Type |
Three-pole, three-wire, non grounding |
Special Features |
Range |
Style |
Power |
Torque rating |
25 lbf-inch |
Voltage Rating |
125/250 V |
Wiring Method |
Back |
Length |
3.785 IN |
Width |
2.433 IN |
Height |
2.478 IN |
Volume |
22.82 CI |
Weight |
0.395 LB |
Length |
3.785 IN |
Width |
2.433 IN |
Height |
2.478 IN |
