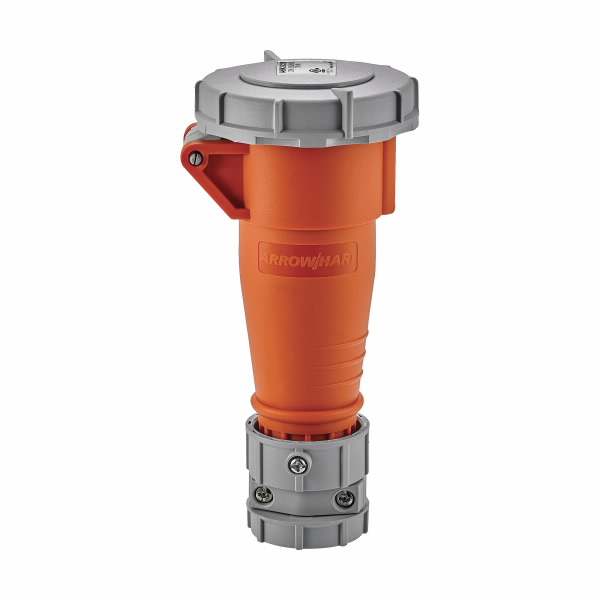

Eaton Arrow hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, Extra Heavy-Duty, 125/250V, Back wire, Orange, Nickel plated brass, IP67, IP69K, Nylon, Three-pole, Four-wire, grounding, 0.333-0.775in (0.85-1.97cm), Female, Nylon
Arrow Hart pin and sleeve iec 60309 devices includes connectors, receptacles, plugs, inlets, interlocks, accessories
| Allowable Wire Size |
#12-10 AWG |
| Amperage Rating |
20 A |
| Application |
Industrial, food and beverage, wastewater treatment |
| Color |
Orange |
| Contact Material |
Nickel plated brass |
| Cord Diameter |
0.333-0.775in (0.85-1.97cm) |
| Design Type |
Pin and sleeve connector |
| Environmental Resistance |
IP67 | IP69K |
| Face/Body Material |
Nylon |
| Gender |
Female |
| Material |
Nylon |
| Number Of Poles |
Three-pole |
| Number Of Wires |
Grounding | 4 |
| Torque rating |
10 lbf-inch |
| Type |
Connector |
| Voltage Rating |
125/250 V |
| Length |
8.5 IN |
| Width |
4.375 IN |
| Height |
4.375 IN |
| Volume |
162.695 CI |
| Weight |
0.749 LB |
| Length |
8.5 IN |
| Width |
4.375 IN |
| Height |
4.375 IN |
| Weight |
0.749 LB |
|
|
- Refer to warranty document.
|
