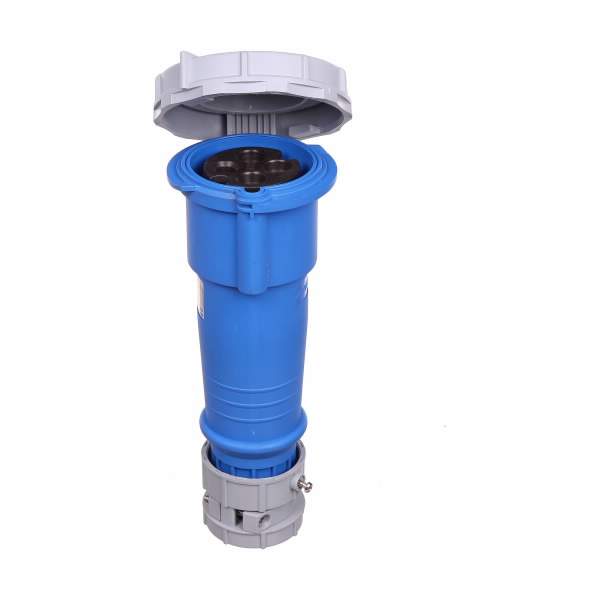

Eaton Arrow hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 30A, 3Ø 250V, Back wire, Blue, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, 5 HP, Nylon, Three-phase
Arrow Hart pin and sleeve iec 60309 devices includes connectors, receptacles, plugs, inlets, interlocks, accessories
| Allowable Wire Size |
#10-2 AWG |
| Amperage Rating |
30A |
| Application |
Industrial, food and beverage, wastewater treatment |
| Color |
Blue |
| Contact Material |
Nickel plated brass |
| Cord Diameter |
0.433-0.985in (1.10-2.5cm) |
| Design Type |
Pin and sleeve connector |
| Environmental Resistance |
IP67 | IP69K |
| Face/Body Material |
Nylon |
| Gender |
Female |
| Horsepower |
5 hp |
| Material |
Nylon |
| Number Of Poles |
Three-pole |
| Number Of Wires |
Grounding | 4 |
| Phase |
Three-phase |
| Torque rating |
10 lbf-inch |
| Type |
Connector |
| Voltage Rating |
250 V |
| Length |
10.375 IN |
| Width |
4.75 IN |
| Height |
4.813 IN |
| Volume |
237.191 CI |
| Weight |
1.207 LB |
| Length |
10.375 IN |
| Width |
4.75 IN |
| Height |
4.813 IN |
| Weight |
1.207 LB |
|
|
- Refer to warranty document.
|
