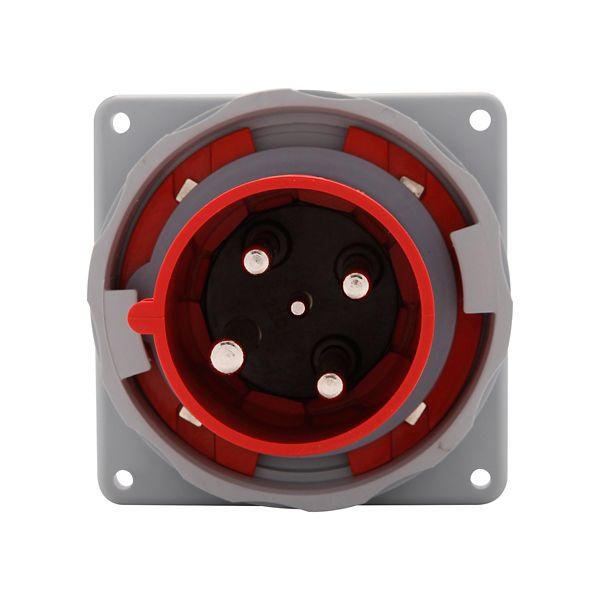

Eaton Wiring Devices AH463B6W Inlet Pin&Sleeve 63A 380-415V 3P4W WT RD

Eaton Wiring Devices

(No reviews yet) Write a Review
$244.19
SKU:
AH463B6W
UPC:
032664733314
Availability:
IN STOCK
Weight:
1.50 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Eaton Wiring Devices AH463B6W Inlet Pin&Sleeve 63A 380-415V 3P4W WT RD

Eaton Arrow hart pin and sleeve inlet, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 63A, 380-415V, Back wire, Red, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, AHBB60 Back box style, Male
Eaton's Arrow Hart full line of pin and sleeve devices offer sturdy nylon construction, rugged design with corrosion resistant components for lasting electrical performance, and watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.

Allowable Wire Size #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot)
Amperage Rating 63A
Application Industrial, food and beverage, wastewater treatment
Back Box Style AHBB60
Color Red
Contact Material Nickel plated brass
Design Type Pin and sleeve inlet
Environmental Resistance IP67 | IP69K
Face/Body Material Nylon
Gender Male
Material Nylon
Number Of Poles Three-pole
Number Of Wires 4 | Grounding
Torque rating 28 lbf-inch
Type Inlet
Length 6.5 IN
Width 5 IN
Height 5.125 IN
Volume 166.563 CI
Weight 1.495 LB
Length 6.5 IN
Width 5 IN
Height 5.125 IN
Weight 1.495 LB

  • Refer to warranty document.
