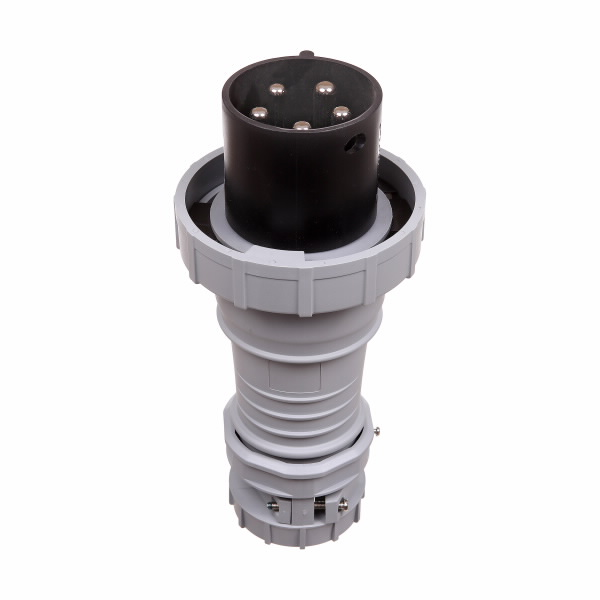

Eaton Arrow hart pin and sleeve plug, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3ØY 347/600V, Back wire, Black, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, 0.97-1.94in (2.46-5.00cm), Male, 30 HP, Nylon, 3PH
Arrow Hart pin and sleeve iec 60309 devices includes connectors, receptacles, plugs, inlets, interlocks, accessories
| Allowable Wire Size |
#4 -1/0 AWG, #12-16 AWG (pilot) |
| Amperage Rating |
100A |
| Application |
Industrial, food and beverage, wastewater treatment |
| Color |
Black |
| Contact Material |
Nickel plated brass |
| Cord Diameter |
0.97-1.94in (2.46-5.00cm) |
| Design Type |
Pin and sleeve plug |
| Environmental Resistance |
IP69K | IP67 |
| Face/Body Material |
Nylon |
| Gender |
Male |
| Horsepower |
30 hp |
| Material |
Nylon |
| Number Of Poles |
Four-pole |
| Number Of Wires |
Grounding | 5 |
| Phase |
Three-phase |
| Torque rating |
70 lbf-inch |
| Type |
Plug |
| Voltage Rating |
347/600 V |
| Length |
13.375 IN |
| Width |
5.5 IN |
| Height |
5.625 IN |
| Volume |
413.789 CI |
| Weight |
3.392 LB |
| Length |
13.375 IN |
| Width |
5.5 IN |
| Height |
5.625 IN |
| Weight |
3.392 LB |
|
|
- Refer to warranty document.
|
