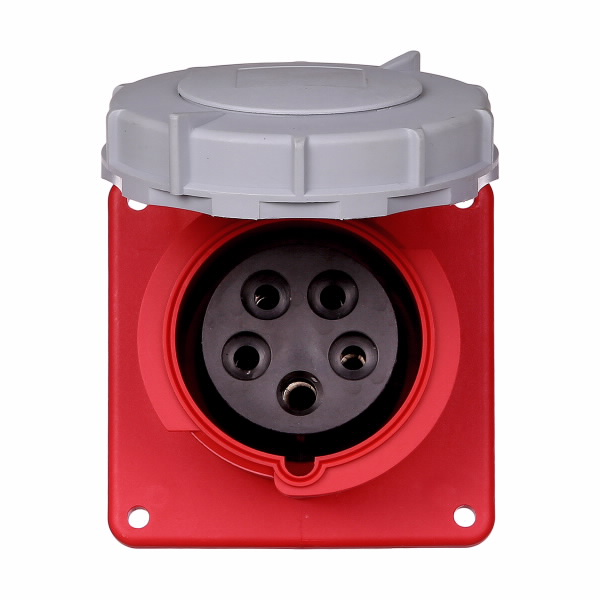

Eaton Arrow hart pin and sleeve receptacle, IP69K Rated, #12-#10 AWG, 16A, Extra Heavy-Duty, 220/380V-240/415V, Back wire, Red, Nickel plated brass, IP67, IP69K, Nylon, Four-pole, Five-wire, grounding, AHBB30 Back box style, Female, Nylon
Arrow Hart pin and sleeve iec 60309 devices includes connectors, receptacles, plugs, inlets, interlocks, accessories
Allowable Wire Size |
#12-10 AWG |
Amperage Rating |
16 A |
Application |
Industrial, food and beverage, wastewater treatment |
Back Box Style |
AHBB30 |
Color |
Red |
Contact Material |
Nickel plated brass |
Design Type |
Pin and sleeve receptacle |
Environmental Resistance |
IP67 | IP69K |
Face/Body Material |
Nylon |
Gender |
Female |
Material |
Nylon |
Number Of Poles |
Four-pole |
Number Of Wires |
5 | Grounding |
Torque rating |
10 lbf-inch |
Type |
Receptacle |
Voltage Rating |
220-240 V |
Length |
3.75 IN |
Width |
3.52 IN |
Height |
3.125 IN |
Volume |
41.25 CI |
Weight |
0.665 LB |
Length |
3.75 IN |
Width |
3.52 IN |
Height |
3.125 IN |
Weight |
0.665 LB |
|
- Refer to warranty document.
|
