Product Overview

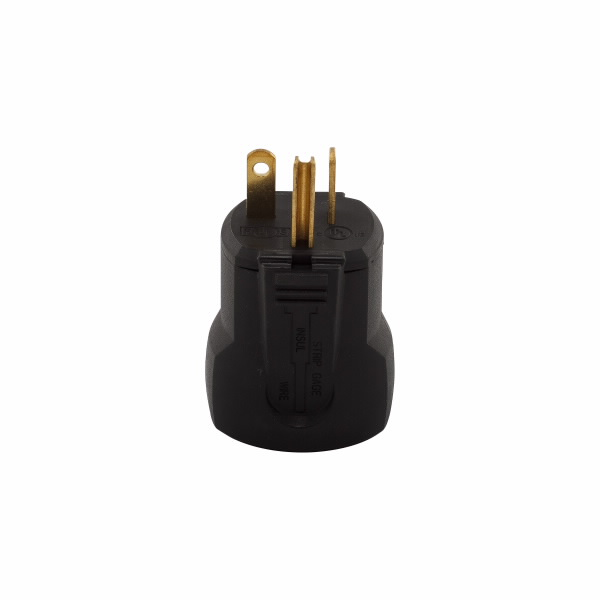

Eaton Wiring Devices AH5464BK Plug 20A 250V 2P3W Str QuickGrip BK
Eaton Arrow Hart quick grip straight blade plug, #18-12 AWG, 20A, Industrial, 250V, Back wire, Black, Brass, Polycarbonate with thermoplastic housing, 5-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66" in diameter, Nylon, Core pack
Quick grip plugs and connectors are designed for quick, secure installation and easy, long-lasting use. They feature rugged nylon construction and a roomy wiring chamber for fast and easy installation. Our scalloped ergonomic design provides a comfortable grip during installation and operation.
| Allowable Wire Size | #18-12 AWG |
| Amperage Rating | 20 A |
| Application | Industrial |
| Color | Black |
| Connection Type | Screw |
| Contact Material | Brass |
| Cord Range | 0.33-0.66" in diameter |
| Design Type | Straight blade |
| Device Grade | Heavy-duty industrial specification grade |
| Device Type | Plug |
| Face/Body Material | Polycarbonate with thermoplastic housing |
| Material | Nylon |
| Nema Configuration | 5-20P |
| Number Of Poles | Two-pole |
| Number Of Wires | 3 |
| Packaging type | Core pack |
| Receptacle Type | Two-pole, three-wire, grounding |
| Style Type | Straight body |
| Torque rating | 12-14 lbf-inch |
| Type | Plug |
| Voltage Rating | 250V |
| Wiring Method | Back wire |
| Length | 1.67 IN |
| Width | 1.96 IN |
| Height | 1.46 IN |
| Volume | 4.779 CI |
| Weight | 0.129 LB |
| Length | 1.67 IN |
| Width | 1.96 IN |
| Height | 1.46 IN |
|
