Product Overview

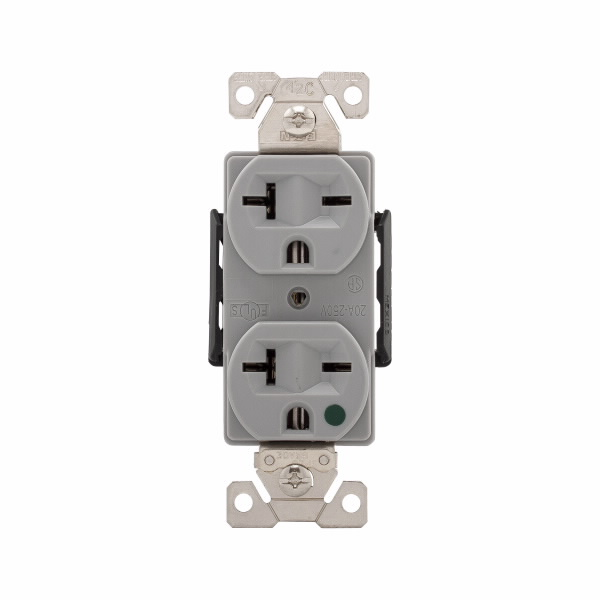

Eaton Wiring Devices AH8400GY Recp HG Dup 20A 250V 2P3W Str B/Swire GY
Eaton Arrow Hart extra heavy-duty hospital grade duplex receptacle, #14-10 AWG, 20A, Healthcare, Flush, 250V, Back and side, Gray, Brass, High-impact nylon face, Glass-filled nylon base, 6-20R, Duplex, Screw, Glass-filled nylon, Core pack
Eaton’s straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.
| Allowable Wire Size | #14-10 AWG |
| Amperage Rating | 20 A |
| Application | Healthcare |
| Color | Gray |
| Connection Type | Screw |
| Contact Material | Brass |
| Design Type | Straight blade |
| Device Grade | Extra heavy-duty hospital grade |
| Device Type | Receptacle |
| Face/Body Material | High-impact nylon face | Glass-filled nylon base |
| Features | Terminal guards | Auto-grounding |
| Material | Glass-filled nylon |
| Mounting method | Flush |
| Mounting Type | Flush |
| Nema Configuration | 6-20R |
| Number Of Poles | Two-pole |
| Number Of Wires | 3 |
| Packaging type | Core pack |
| Receptacle Type | Duplex |
| Style Type | Standard |
| Torque rating | 14 lbf-inch |
| Type | Duplex receptacle |
| Voltage Rating | 250V |
| Wiring Method | Back and side |
| Length | 1.3 IN |
| Width | 0.88 IN |
| Height | 4.19 IN |
| Volume | 4.793 CI |
| Weight | 0.2 LB |
| Length | 1.3 IN |
| Width | 0.88 IN |
| Height | 4.19 IN |
| Weight | 0.2 LB |
|
