Eaton Wiring Devices AHCL1530P CCL Plug 30A 250V 3PH 3P4W-BL&BK

Eaton Wiring Devices

(No reviews yet) Write a Review
$32.56
SKU:
AHCL1530P
UPC:
032664755552
Availability:
IN STOCK
Weight:
0.40 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

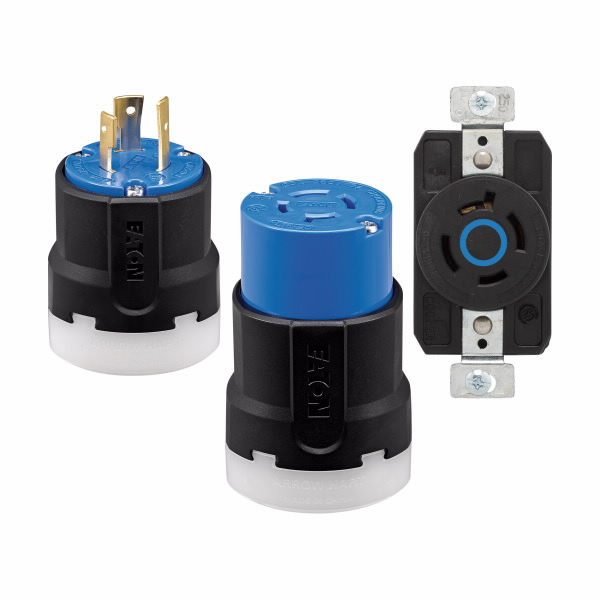

Eaton Wiring Devices AHCL1530P CCL Plug 30A 250V 3PH 3P4W-BL&BK

Eaton Arrow Hart Color Coded Locking Plug, #14-8 AWG, 30A, Industrial, 250 V, Back, Blue, Black, Ultra grip, Nylon, L15-30, Three-pole, Four-wire, Nylon, 0.38 - 1.16" (9.5 - 29.5mm), -40°C (w/o impact) to 60°C (-40°F to 140°F)
Arrow Hart offers the most rugged, feature-rich, broadest line of quality locking devices to meet the specific needs of demanding industrial applications

Allowable Wire Size #14-8 AWG
Amperage Rating 30A
Application Industrial
Color Black | Blue
Cord Diameter 0.38-1.16 in (9.5-29.5 mm)
Design Type Ultra grip
Face/Body Material Nylon
Material Nylon
Nema Configuration L15-30
Number Of Poles Three-pole
Number Of Wires 4
Operating Temperature -40 to 60 °C (-40 to 140 °F)
Special Features Voltage Color Coding
Torque rating 14-16 lbf-inch
Type Locking Plug
Voltage Rating 3Ø 250 V
Wiring Method Back
Length 2.13 IN
Width 2.3 IN
Height 2.92 IN
Volume 14.305 CI
Weight 0.4 LB
Length 4.187 IN
Width 2.282 IN
Height 2.313 IN
Weight 0.4 LB

  • Refer to warranty document.
