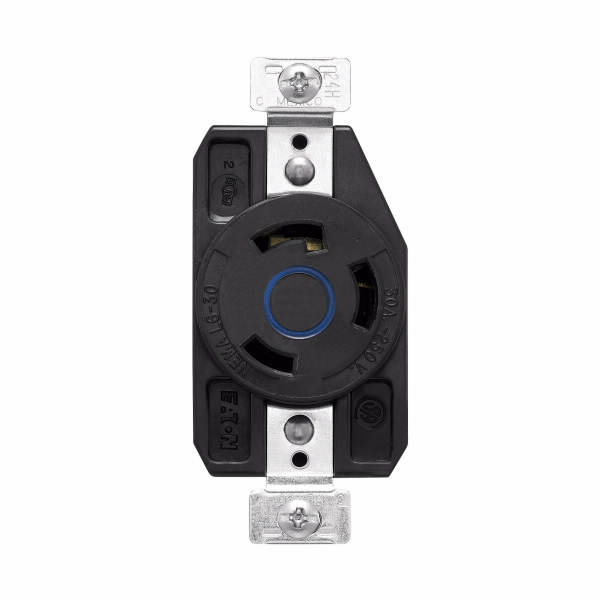

Eaton Arrow Hart Color Coded Locking Receptacle, #14-8 AWG, 30A, Industrial, 250V, Back and Side, Blue, Black, Ultra grip, Glass filled Nylon, L6-30, Two-pole, Three-wire, Glass-filled Nylon, -40°C (w/o impact) to 70°C (-40°F to 158°F)
Arrow Hart offers the most rugged, feature-rich, broadest line of quality locking devices to meet the specific needs of demanding industrial applications
| Allowable Wire Size |
#14-8 AWG |
| Amperage Rating |
30A |
| Application |
Industrial |
| Color |
Black | Blue |
| Design Type |
Ultra grip |
| Face/Body Material |
Glass filled Nylon |
| Material |
Glass filled nylon |
| Nema Configuration |
L6-30 |
| Number Of Poles |
Two-pole |
| Number Of Wires |
3 |
| Operating Temperature |
-40 to 70 °C (-40 to 158 °F) |
| Special Features |
Voltage Color Coding |
| Torque rating |
20 lbf-inch |
| Type |
Locking Receptacle |
| Voltage Rating |
250 V |
| Wiring Method |
Back and side |
| Length |
1.62 IN |
| Width |
1.12 IN |
| Height |
3.64 IN |
| Volume |
6.604 CI |
| Weight |
0.33 LB |
| Length |
1.8 IN |
| Width |
1.8 IN |
| Height |
4.5 IN |
| Weight |
0.33 LB |
|
|
- Refer to warranty document.
|
