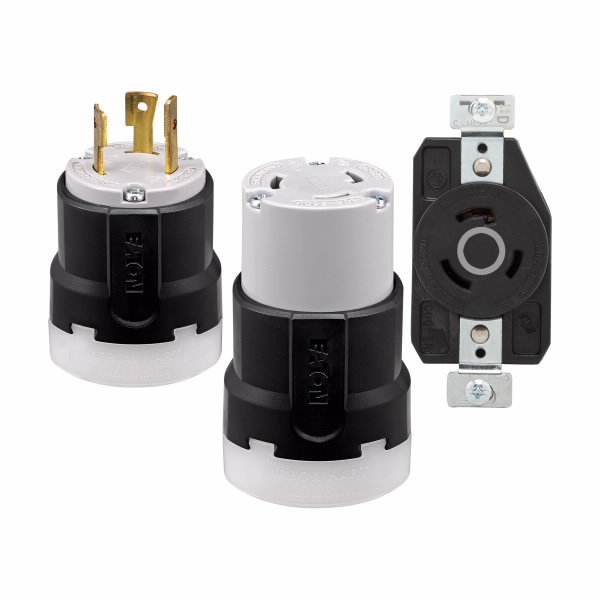

Eaton Arrow Hart Color Coded Locking Connector, #14-8 AWG, 20A, Industrial, 277V, Back, Gray, Black, Ultra grip, Nylon, L7-20, Two-pole, Three-wire, Nylon, 0.38 - 1.00" (9.5 - 25.4mm), -40°C (w/o impact) to 60°C (-40°F to 140°F)
Arrow Hart offers the most rugged, feature-rich, broadest line of quality locking devices to meet the specific needs of demanding industrial applications
| Allowable Wire Size |
#14-8 AWG |
| Amperage Rating |
20 A |
| Application |
Industrial |
| Color |
Black | Gray |
| Cord Diameter |
0.38-1 in (9.5-25.4 mm) |
| Design Type |
Ultra grip |
| Face/Body Material |
Nylon |
| Material |
Nylon |
| Nema Configuration |
L7-20 |
| Number Of Poles |
Two-pole |
| Number Of Wires |
3 |
| Operating Temperature |
-40 to 60 °C (-40 to 140 °F) |
| Special Features |
Voltage Color Coding |
| Torque rating |
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch |
| Type |
Locking Connector |
| Voltage Rating |
277 V |
| Wiring Method |
Back |
| Length |
2.23 IN |
| Width |
2.1 IN |
| Height |
3.71 IN |
| Volume |
17.374 CI |
| Weight |
0.49 LB |
| Length |
4.187 IN |
| Width |
2.282 IN |
| Height |
2.313 IN |
| Weight |
0.51 LB |
|
|
- Refer to warranty document.
|
