Product Overview

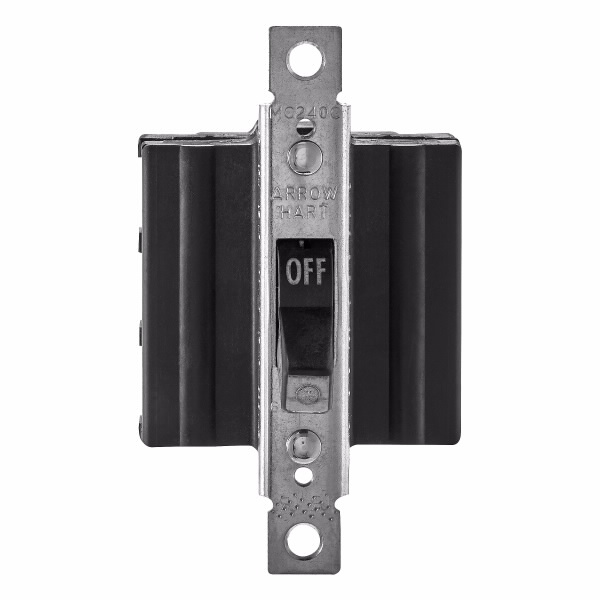

Eaton Wiring Devices AHMC240C-1 AHMC240C Mounted in NEMA 1 Enclosure
Eaton's Arrow Hart manual motor controllers offer compact, industrial-grade designs built to provide safe, reliable motor control performance in even the most rugged environments. They feature high-impact-resistant, glass-filled nylon construction; easy-to-read electrical ratings on rugged steel mounting straps; clear ON/OFF indicators on large, rugged toggles; distinct wire pockets and thick-wall arc barriers to contain strands; and screw-and-clamp or box-lug terminals to meet individual project requirements. Plus, two sets of contacts per pole distribute load and make/break action for long, reliable duty.
Allowable Wire Size | #14-8 AWG |
Amperage Rating | 40A |
Application | Industrial |
Closure Type | Maintained |
Color | Gray |
Contact Type | Maintained |
Device Grade | Industrial |
Enclosure | NEMA 1 |
Enclosure Material | Stainless steel |
Material | Glass-filled nylon |
Mounting method | Panel |
Mounting Type | Panel |
NEMA Rating | 1 |
Number Of Poles | Two-pole |
Number Of Positions | 2 |
Phase | Single-phase |
Switch Type | Toggle switch |
Terminals | Copper-alloy, brass screw |
Termination Style | Side wired screw and clamp |
Throw | Single-throw |
Type | Manual motor controller |
Voltage Rating | 600 V |
Wiring Method | Side wired screw and clamp |
Length | 4.67 IN |
Width | 2.63 IN |
Height | 4.42 IN |
Volume | 54.287 CI |
Weight | 2.14 LB |
Length | 4.67 IN |
Width | 2.63 IN |
Height | 4.42 IN |
