Product Overview

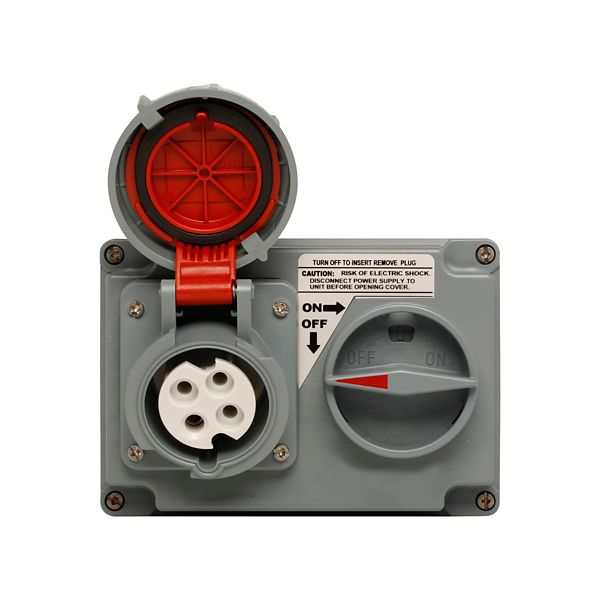

Eaton Wiring Devices CD420HMI7W Mch Int Pin&Slv 20A480V3PH 3P4W WT HZ RD
Eaton Arrow hart mechanical interlock, Horizontal, Non-fusible, 20A, Extra Heavy-Duty, 3Ø 480V, Back wire, Red and gray, Brass, NEMA 4X, NEMA 12, IP66, Valox, Three-pole, Four-wire, grounding, Female, 10 HP, Rugged Valox, Three-phase
Eaton's Arrow Hart full line of pin and sleeve devices offer sturdy nylon construction, rugged design with corrosion resistant components for lasting electrical performance, and watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.
| Amperage Rating | 20 A |
| Application | Industrial, food and beverage, wastewater treatment |
| Color | Red | Gray |
| Contact Material | Brass |
| Design Type | Mechanical Interlock |
| Environmental Resistance | NEMA 12 | NEMA 4X | IP66 |
| Face/Body Material | Valox |
| Gender | Female |
| Horsepower | 10 hp |
| Material | Rugged Valox |
| Number Of Poles | Three-pole |
| Number Of Wires | Grounding | 4 |
| Phase | Three-phase |
| Special Features | Horizontal, Non-fusible |
| Type | Mechanical interlock |
| Voltage Rating | 480 V |
| Length | 8.12 IN |
| Width | 6.37 IN |
| Height | 5.5 IN |
| Volume | 284.484 CI |
| Weight | 0.25 LB |
| Length | 8.12 IN |
| Width | 6.37 IN |
| Height | 5.5 IN |
| Weight | 0.25 LB |
