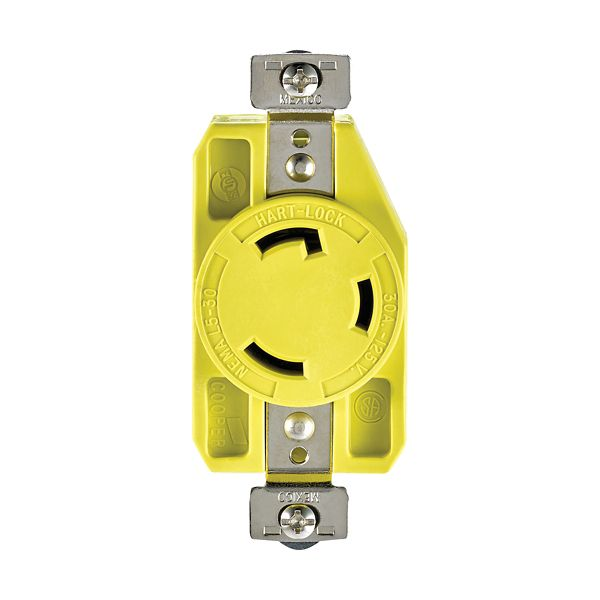

Eaton corrosion resistant locking receptacle, #14-10 AWG, 30A, Industrial, 125V, Back and side wiring, Yellow, Single, Corrosion resistant, L5-30, Two-pole, Three-wire, Thermoplastic
Corrosion Resistant locking devices and NEMA straight blades
Allowable Wire Size |
#14-10 AWG |
Amperage Rating |
30A |
Application |
Industrial |
Color |
Yellow |
Contact Material |
Nickel plated brass |
Design Type |
Single receptacle |
Device Grade |
Extra heavy-duty industrial specification grade |
Environmental Conditions |
Corrosion resistant |
Environmental Resistance |
Corrosion resistant |
Face/Body Material |
Glass filled Nylon |
Material |
Thermoplastic |
Nema Configuration |
L5-30 |
Number Of Gangs |
Single-gang |
Number Of Poles |
Two-pole |
Number Of Wires |
Grounding | 3 |
Operating Temperature |
-20 to 70 °C (-4 to 158 °F) |
Receptacle Type |
Locking |
Special Features |
Corrosion resistant |
Torque rating |
20 lbf-inch |
Type |
Locking receptacle |
Voltage Rating |
125 V |
Wiring Method |
Back and side |
Length |
1.54 IN |
Width |
0.75 IN |
Height |
4.19 IN |
Volume |
4.839 CI |
Weight |
0.3 LB |
Length |
1.54 IN |
Width |
0.75 IN |
Height |
4.19 IN |
Weight |
0.3 LB |
