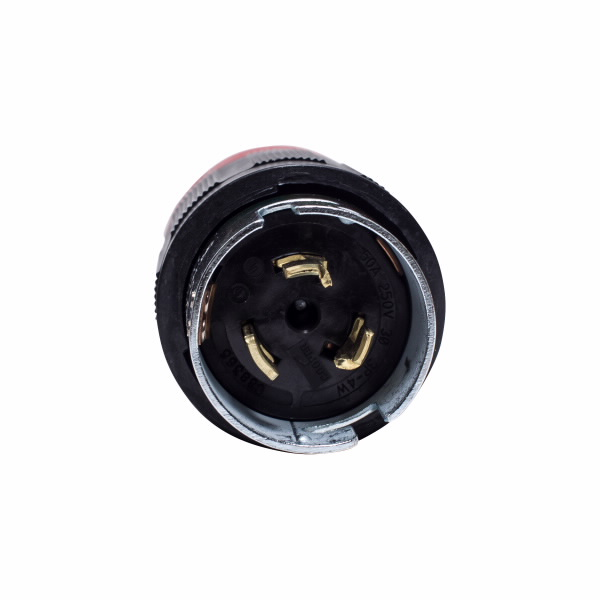

Eaton locking plug, #10-6 AWG, 50A, Industrial, 250V, Back wiring, Black, red, Non-NEMA, Three-pole, Four-wire, Nylon, 0.44 to 1.06 in, California standard
Non-NEMA Locking Devices (California Style) includes Inlets and Outlets
| Allowable Wire Size |
#10-4 AWG |
| Amperage Rating |
50 A |
| Application |
Industrial |
| Color |
Black | Red |
| Contact Material |
Zinc plated brass |
| Cord Diameter |
0.44-1.06 in (11.1-26.0 mm) |
| Design Type |
Pro grip |
| Device Grade |
Extra heavy duty |
| Face/Body Material |
Glass filled Nylon |
| Material |
Nylon |
| Nema Configuration |
Non-NEMA |
| Number Of Poles |
Three-pole |
| Number Of Wires |
Grounding | 4 |
| Operating Temperature |
-40 to 105 °C (-40 to 221 °F) |
| Special Features |
Locking plug |
| Standard |
California standard |
| Torque rating |
45 lbf-inch |
| Type |
Locking plug |
| Voltage Rating |
3Ø 250 V |
| Wiring Method |
Back |
| Length |
6.94 IN |
| Width |
3.61 IN |
| Height |
3.38 IN |
| Volume |
84.68 CI |
| Weight |
1.05 LB |
| Length |
6.94 IN |
| Width |
3.61 IN |
| Height |
3.38 IN |
| Weight |
1.05 LB |
|
|
- Refer to warranty document.
|
