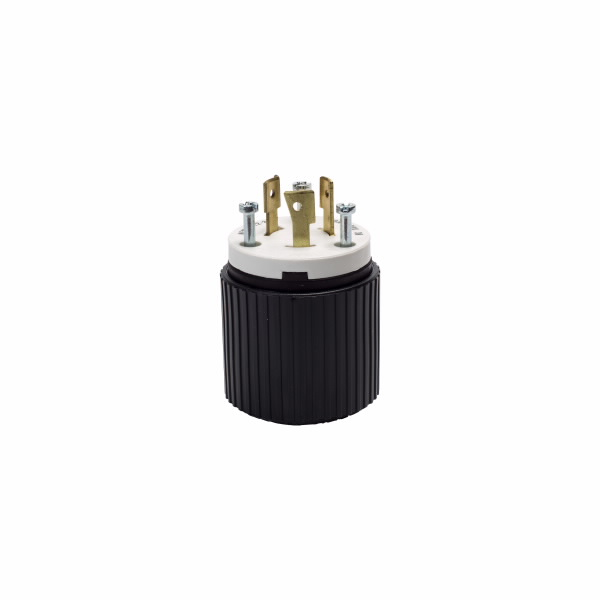

Eaton auto grip locking plug , #18-8 AWG, 20A, Industrial, 480V, Back wiring, Black, white, Auto grip, L12-20, Three-pole, Three-wire, Nylon, 0.38 to 1 in, -40° to 60°C
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
| Allowable Wire Size |
#18-8 AWG |
| Amperage Rating |
20 A |
| Application |
Industrial |
| Color |
Black | White |
| Contact Material |
Brass |
| Cord Diameter |
0.39-0.95 in (7.6 mm-24.1 mm) |
| Design Type |
Standard locking plug |
| Device Grade |
Heavy-duty specification grade |
| Face/Body Material |
Nylon |
| Material |
Nylon |
| Nema Configuration |
L12-20 |
| Number Of Poles |
Three-pole |
| Number Of Wires |
Non-grounding | 3 |
| Operating Temperature |
-40 to 60 °C (-40 to 140 °F) |
| Special Features |
Auto grip locking flanged outlet |
| Torque rating |
14 lbf-inch |
| Type |
Locking plug |
| Voltage Rating |
3Ø 480 V |
| Wiring Method |
Back |
| Length |
2.13 IN |
| Width |
2.13 IN |
| Height |
3.9 IN |
| Volume |
17.694 CI |
| Weight |
0.27 LB |
| Length |
2.13 IN |
| Width |
2.13 IN |
| Height |
3.9 IN |
| Weight |
0.27 LB |
|
|
- Refer to warranty document.
|
