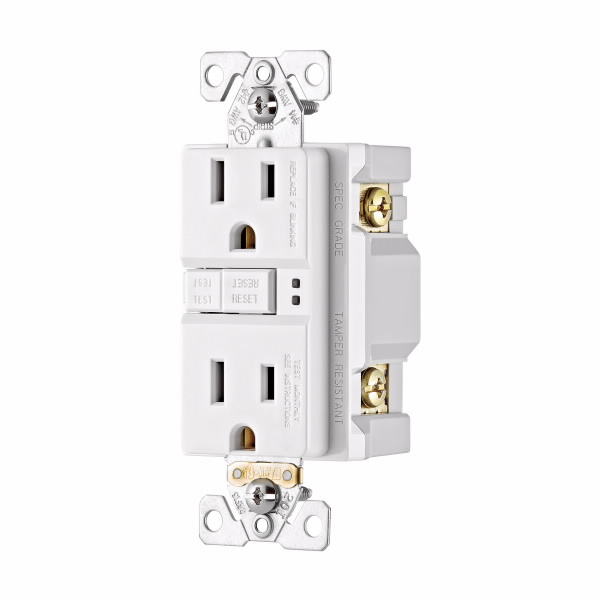

Eaton Wiring Devices TRSGF15W-BOX GFCI TR Self Test Duplex 15A 125V WH
Eaton ground fault circuit interrupter receptacle, Box, 15A, 125V, Back wire and side wire, GFCI, White, Brass, Receptacle, Tamper resistant, PVC, 5-15R, Two-pole, three-wire, grounding
Eaton's Ground Fault Circuit Interrupter (GFCI) receptacles are circuit interrupters designed to recognize a ground fault in your wiring and immediately break the flow of electricity, thus protecting you from electrical shock. Further, they prevent re-setting if, once tripped, the ground fault renders the device no longer functional. Eaton GFCIs are tested to the highest standards and provide dependable, state-of-the-art protection suitable for residential, commercial, and industrial settings, including homes, offices, hospitals, schools, and even outdoor applications. When combined with Eaton’s AFCI technology, Eaton's ground fault circuit interrupter receptacles provide fire and electrical safety in one device (AF/GF) and are also available in breakers.
Allowable wire size |
#14 - 10 AWG |
Amperage Rating |
15 A |
Application |
Residential|Commercial |
Circuit Interrupter Type |
GFCI |
Color |
White |
Contact Material |
Brass |
Device Type |
Receptacle |
Environmental Conditions |
Tamper resistant |
Face/Body Material |
Polycarbonate | PVC |
Features |
Tamper resistant |
Mounting method |
Flush |
Nema Configuration |
5-15R |
Number Of Poles |
Two-pole |
Number of wires |
Three-wire |
Receptacle Type |
Two-pole, three-wire, grounding |
Torque rating |
16 lbf-inch |
Type |
Self-test |
Voltage Rating |
125V |
Wiring Method |
Back and side wire |
Length |
2.056 IN |
Width |
2.834 IN |
Height |
2.056 IN |
Volume |
11.98 CI |
Weight |
0.377 LB |
Length |
2.056 IN |
Width |
2.834 IN |
Height |
2.056 IN |
Weight |
0.377 LB |
Certifications
