Product Overview

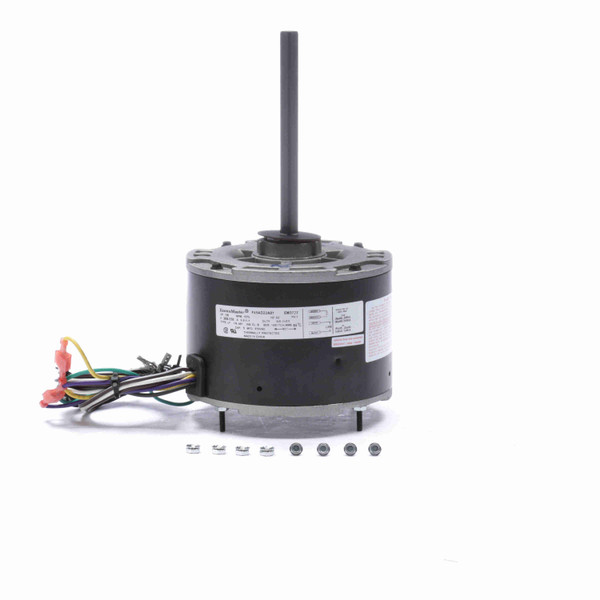

EconoMaster EM3727 1/6 HP 60°C Condenser Fan Motor 1075 RPM 208-230 Volts 48 Frame Replaces Mar 10727
- EconoMaster - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 36" Leads
- Extended Studs Lead End, Mounting Holes in Shell, Belly Band
General Specifications
UPC: | 786674019547 | Weight: | 9.00 LB |
Packaged Length: | 13.78 IN | Packaged Width: | 6.41 IN |
Packaged Height: | 6.81 IN |
Nameplate Specifications
Output HP: | 1/6 Hp | Output KW: | 0.13 kW |
Frequency: | 60 Hz | Voltage: | 208-230 V |
Current: | 1.0-1.1 A | Speed: | 1075 rpm |
Service Factor: | 1 | Phase: | 1 |
Duty: | Air Over | Insulation Class: | B |
Frame: | 48Y | Enclosure: | Totally Enclosed |
Thermal Protection: | Automatic | Ambient Temperature: | 60 °C |
UL: | Recognized | CSA: | Y |
CE: | N |
Technical Specifications
Electrical Type: | Permanent Split Capacitor | Starting Method: | Induction Run |
Poles: | 6 | Rotation: | Reversible |
Mounting: | Extended Studs | Motor Orientation: | Any |
Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
Frame Material: | Rolled Steel | Shaft Type: | Flat |
Overall Length: | 10.42 in | Frame Length: | 3.25 in |
Shaft Diameter: | 0.500 in | Shaft Extension: | 6.0 in |
Direct replacement for
Century (Formerly A. O. Smith) | F48F90A76 |
---|---|
Century (Formerly A. O. Smith) | F48F96A76 |
Century (Formerly A. O. Smith) | FSE1016S |
Century (Formerly A. O. Smith) | FSE1016SF |
Century (Formerly A. O. Smith) | FSE1016SV1 |
Fasco | D906 |
Carrier | P257-3727 |
Carrier | P257-8727 |
Emerson | 1859 |
Emerson | 1888 |
Emerson | 6727 |
Emerson | K48CLW1562 |
Emerson | KA55EEA711 |
GE | 3465 |
GE | 5KCP39BGP870 |
GE | 5KCP39DG375 |
GE | 5KCP39DGS375 |
Rheem | 51-24437-27 |
Trane | MOT10141 |
Trane | MOT10143 |
Trane | MOT11727 |
Trane | MOT13184 |
Trane | MOT6061 |
Wagner | WG840727 |
Universal | 184 |
Gemline | EM3727 |
Goodman | B13400251 |
Goodman | B134400-251 |
Heil Quaker | 1052662 |
ICP | HQ1052662 |
Mars | 03727 |
Mars | 10727 |
Mars | 10732 |
Nordyne | 01-0160 |
Reznor | 51-21854-01 |
R.E. Michel | 1Z651 |
Global | S3727 |
Smart Electric | 242733 |
Smart Electric | SE3465 |
Smart Electric | SE3727 |
Rotom | CF3727 |
Rotom | R22175 |
Rotom | R22184 |
Rotom | R32556 |
A1 Components | F2789 |
A1 Components | F5014 |
TopTech | TT-C16-1SP2 |
US Motors | 1859 |
Source 1 | 1052662 |
Source 1 | FHM3727 |
Source 1 | S1-FHM3727 |
