Product Overview

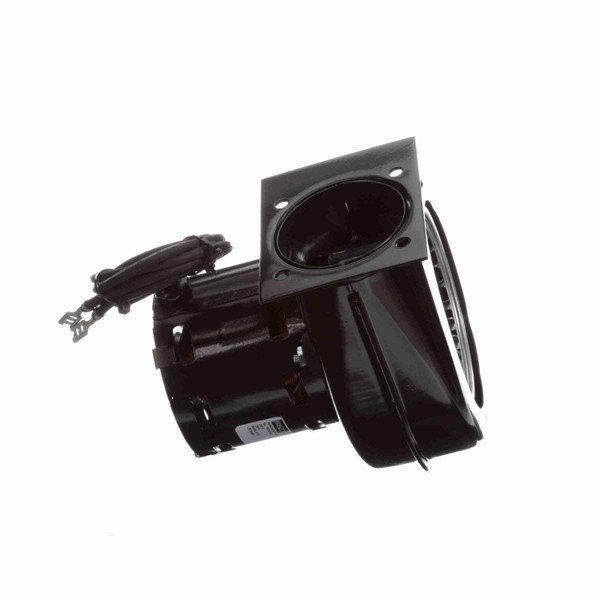

Fasco A151 Draft Inducer 115 Volts 2800 RPM Replaces ICP 1050144
- OEM Direct Replacement - Centrifugal Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 25" Leads with Spade Terminals
General Specifications
UPC: | 815585026532 | Weight: | 4.00 LB |
Packaged Length: | 7.75 IN | Packaged Width: | 6.5 IN |
Packaged Height: | 6.25 IN |
Nameplate Specifications
Voltage: | 230 V | Motor Type: | Shaded Pole |
Thermal Protection: | Thermally | Speed: | 2800 rpm |
Current: | 0.3 A | Number of Speeds: | 1 |
Frequency: | 60 Hz | Phase: | 1 |
Ambient Temperature: | 40 °C | UL: | Yes |
Insulation Class: | B | CSA: | Yes |
Technical Specifications
Blower Outlet Shape: | Round | Motor Enclosure: | Open |
Blower Outlet Flange: | Yes | Bearing Type: | Sleeve |
Direct replacement for
Fasco | 7021-10287 |
---|---|
Fasco | A151 |
Heil Quaker | HQ1050144 |
ICP | 1050144 |
ICP | 1170870 |
ICP | 4MH40 |
ICP | 7021-10287 |
ICP | HQ1050144 |
