Product Overview

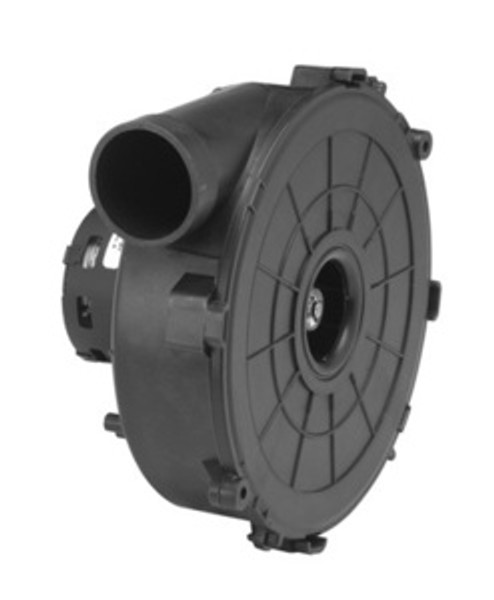

Fasco A209 Draft Inducer 115 Volt 3200/2800 RPM Replaces Fasco Lennox 7062-5441
- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 7" Leads with Socket Terminals
General Specifications
| UPC: | 815585025436 | Weight: | 7.00 LB |
| Packaged Length: | 11 IN | Packaged Width: | 11 IN |
| Packaged Height: | 10 IN |
Nameplate Specifications
| Voltage: | 115 V | Motor Type: | Permanent Split Capacitor |
| Thermal Protection: | Thermally | Speed: | 3200/2800 rpm |
| Current: | 0.8 A | Number of Speeds: | 2 |
| Frequency: | 60 Hz | Phase: | 1 |
| Ambient Temperature: | 40 °C | UL: | Yes |
| Insulation Class: | B | CSA: | Yes |
Technical Specifications
| Blower Outlet Shape: | Round | Motor Enclosure: | Open |
| Blower Outlet Flange: | No | Bearing Type: | Ball |
Direct replacement for
| Fasco | 7062-5441 |
|---|---|
| Lennox | 38M5001 |
| Lennox | 7062-5441 |
