Product Overview

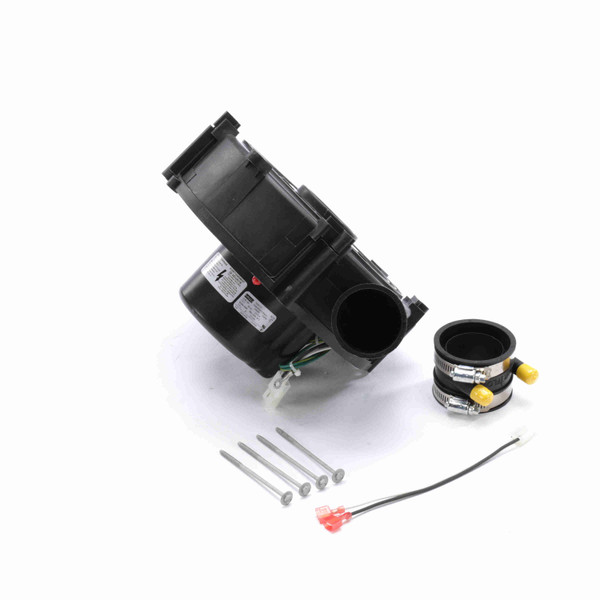

Fasco A985 Draft Inducer 3000 RPM 120 Volts Replaces ICP 7058-1124
- OEM Direct Replacement - Draft Inducer Blower
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 7"-6" Leads with Terminal Housing
General Specifications
UPC: | 815585026884 | Weight: | 7.00 LB |
Packaged Length: | 12.5 IN | Packaged Width: | 11 IN |
Packaged Height: | 10 IN |
Nameplate Specifications
Voltage: | 115 V | Motor Type: | Shaded Pole |
Thermal Protection: | Thermally | Speed: | 3300 rpm |
Current: | 2.4 A | Number of Speeds: | 1 |
Frequency: | 60 Hz | Phase: | 1 |
Ambient Temperature: | 40 °C | UL: | Yes |
Insulation Class: | B | CSA: | Yes |
Technical Specifications
Blower Outlet Shape: | Round | Motor Enclosure: | Open |
Blower Outlet Flange: | No | Bearing Type: | Ball |
