Product Overview

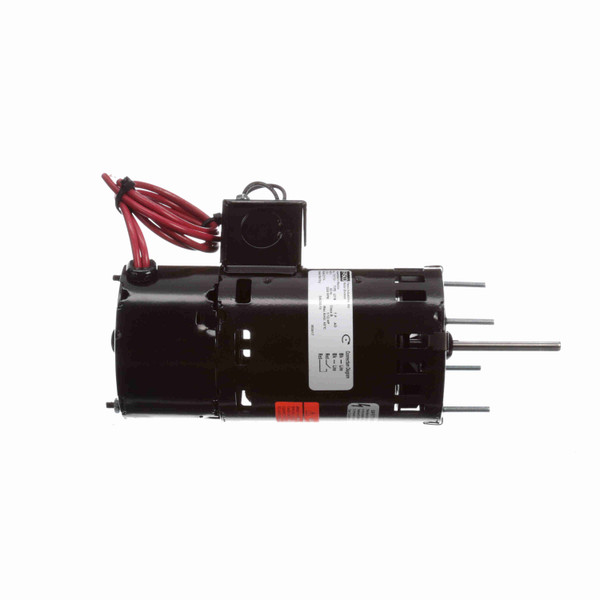

Fasco D1174 Draft Inducer 3000 RPM 460 Volts Replaces Carrier 7121-7321
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/4" Diameter Shaft with Flat
- Conduit Box, 15" Switch Leads
- Mounting Plate Shaft End
General Specifications
UPC: | 815585027973 | Weight: | 5.00 LB |
Packaged Length: | 11.38 IN | Packaged Width: | 6.5 IN |
Packaged Height: | 4.25 IN |
Nameplate Specifications
Output HP: | 1/12 Hp | Output KW: | 0.06 kW |
Frequency: | 60 Hz | Voltage: | 460 V |
Current: | 0.60 A | Speed: | 3000 rpm |
Service Factor: | 1 | Phase: | 1 |
Duty: | Air Over | Insulation Class: | B |
Frame: | 3.3 | Enclosure: | Open Air Over |
Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
UL: | No | CSA: | N |
CE: | N |
Technical Specifications
Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
Poles: | 2 | Rotation: | Clockwise Shaft End |
Mounting: | Extended Studs | Drive End Bearing: | Ball |
Opp Drive End Bearing: | Ball | Frame Material: | Steel |
Shaft Type: | Flat | Overall Length: | 9.69 in |
Frame Length: | 4.52 in | Shaft Diameter: | 0.250 in |
Shaft Extension: | 2.5 in |
Direct replacement for
Fasco | 7121-7321 |
---|---|
Carrier | 7121-7321 |
Carrier | F33HXJBB3621 |
Carrier | f33HXJBB3622 |
Carrier | HC24AU525 |
Carrier | HC24AU725 |
Carrier | HC24AU725A |
Carrier | HC24AU725B |
Carrier | HC24AU726 |
Carrier | HC27UE120 |
Carrier | HC34AU725A |
Carrier | JB1PO44NV |
Emerson | F33HXJBB3622 |
Universal | JB1PO44NV |
