Product Overview

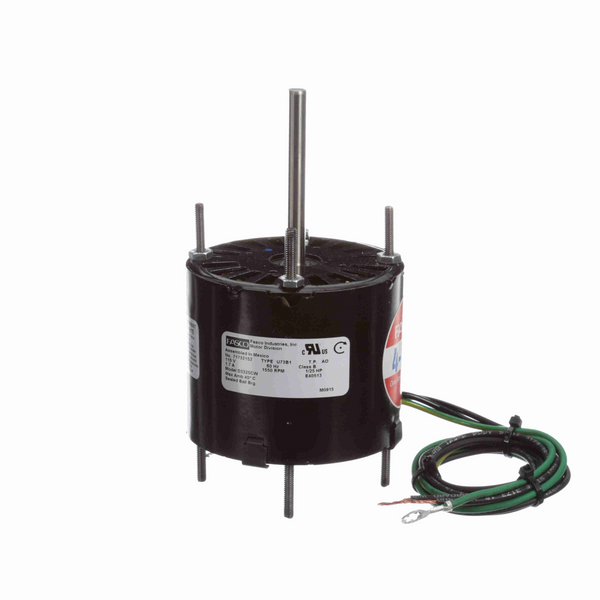

Fasco D3325CW 1/25 HP Ventilation Motor 1550 RPM 115 Volts 3.3" Diameter
KEY FEATURES
- Fan and Blower Duty Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 23" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount
- Downloads:
- D3325CW Data Pack
General Specifications
| UPC: | 815585029588 | Weight: | 3.47 LB |
| Packaged Length: | 8 IN | Packaged Width: | 3.88 IN |
| Packaged Height: | 3.38 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/25 Hp | Output KW: | 0.03 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 1.70 A | Speed: | 1550 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Air Over | Insulation Class: | B |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 5.43 in |
| Frame Length: | 2.55 in | Shaft Diameter: | 0.312 in |
| Shaft Extension: | 2.6 in |
