Product Overview

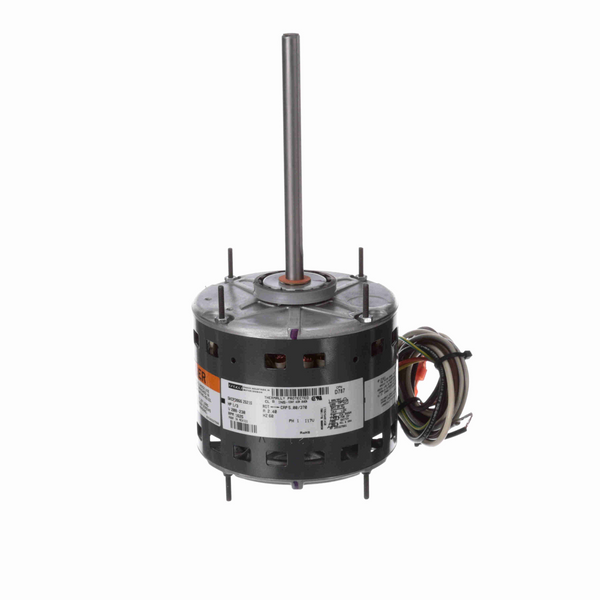

Fasco D787 Fan and Blower Motor 1/3 HP 1 Ph 60 Hz 208-230 V 1625 RPM 1 Speed 48 Frame
KEY FEATURES
- Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Shell and Lead End End-Frame, Enclosed Shaft End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 27" Leads
- Extended Studs Shaft End and Lead End, Resilient Ring Mounting, Belly Band
- Downloads:
- D787 Data Pack
General Specifications
| UPC: | 818508020204 | Weight: | 13.00 LB |
| Packaged Length: | 14.06 IN | Packaged Width: | 6.04 IN |
| Packaged Height: | 6.02 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/3 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 2.20 A | Speed: | 1625 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous Air Over | Insulation Class: | B |
| Frame: | 48 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Poles: | 4 |
| Rotation: | Reversible | Mounting: | Resilient Rings |
| Motor Orientation: | Any | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Rolled Steel |
| Shaft Type: | Double Flat | Overall Length: | 11.89 in |
| Frame Length: | 3.82 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 6.50 in | Thru-bolts Extension: | 1.00 in |
