Product Overview

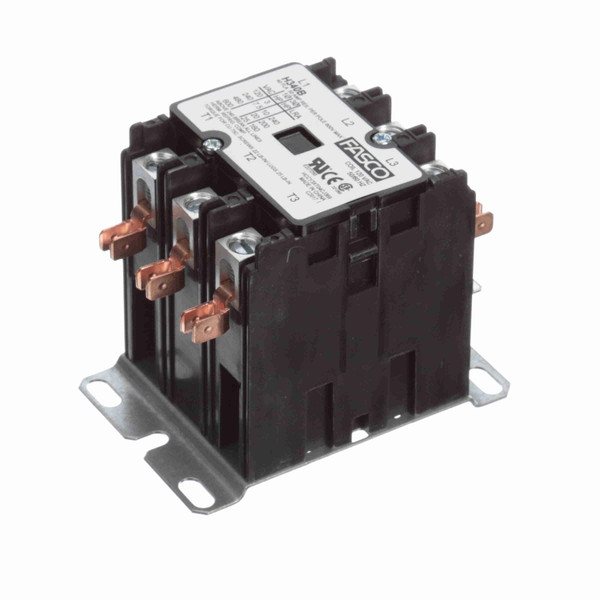

Fasco H340B 3 Pole Contactor 40 Amps 120 Volt Coil
KEY FEATURES
- Definite Purpose Contactor
- Number of Poles: 3
- Locked Rotor Amps: 240 / 200 / 160
- Resistive AMPS: 50
- Coil AC Volts: 120
- Coil VA Inrush 60 HZ: 60, Coil VA Sealed 60 HZ: 6
- Coil VA Inrush 50 HZ: 65, Coil VA Sealed 50 HZ: 7.5
- HP 120 Volts 1 Phase: 3, HP 208 Volts 1 Phase: 0, HP 240 Volts 1 Phase: 3, HP 208 Volts 3 Phase: 0, HP 240 Volts 3 Phase: 10, HP 480 Volts 3 Phase: 20, HP 600 Volts 3 Phase: 25
- Length x Width x Height: 3.25" x 1.76" x 2.99"
- Includes: Mounting Plate, Quick Connect Terminals, Lugs
General Specifications
| UPC: | 818508026978 | Weight: | 1.00 LB |
| Packaged Length: | 4 IN | Packaged Width: | 2.5 IN |
| Packaged Height: | 3 IN |
