Product Overview

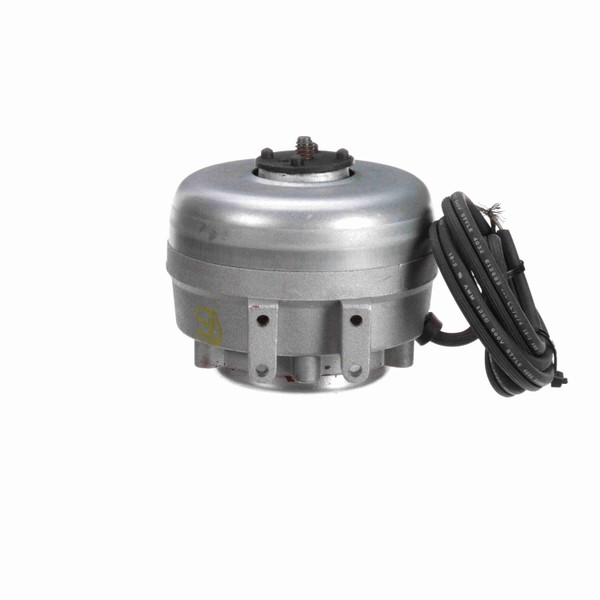

Fasco UB552 2.3 WATT Refrigeration Motor 1300 RPM 230 Volts Unit Bearing
KEY FEATURES
- Refrigeration Motor
- Unit Bearing
- Shaded Pole
- Impedance Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Bearing - Unit
- 1/4 x 20 Threaded Shaft
- 28" Leads with .05" Strip
- 2 Mounting Feet, 5 Rear Mounting Holes
Nameplate Specifications
| Phase: | 1 | Output Watts: | 2.3 W |
| Voltage: | 230 V | Speed: | 1300 rpm |
| Service Factor: | 1 | Frame: | UNIT BEARING |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Impedance |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 0.08 A | Duty: | Continuous |
| Insulation Class: | B | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Opposite Shaft End |
| Mounting: | 2 BOSS/OSE 5 HOLES | Drive End Bearing: | Unit |
| Opp Drive End Bearing: | Unit | Frame Material: | Aluminum |
| Shaft Type: | Threaded | Frame Length: | 2.87 in |
| Shaft Diameter: | 1/4x20 in | Shaft Extension: | .415 in |
General Specifications
| UPC: | 786674069986 | Weight: | 1.87 LB |
| Packaged Length: | 4.25 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 4 IN | Country of Origin: | China |
