Product Overview

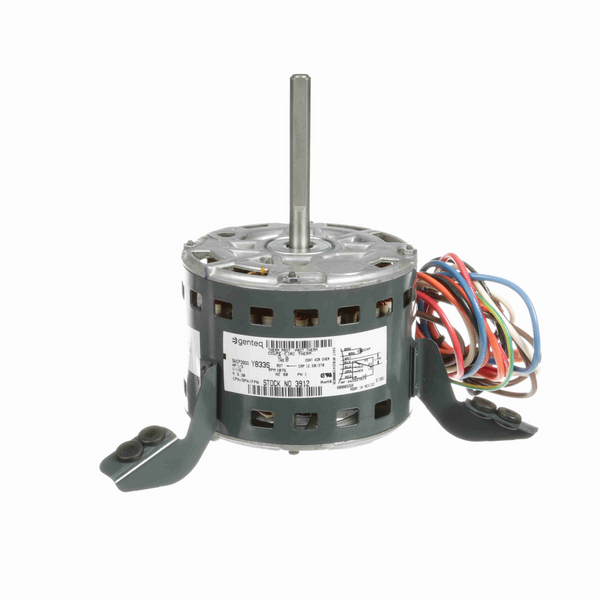

Genteq 3912 OEM Replacement Motor 1/3 HP 1 Ph 60 Hz 115 V 1075 RPM 4 Speed 48 Frame
KEY FEATURES
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 25" Leads
- Torsion Flex Lug Mounting
Nameplate Specifications
Phase: | 1 | Output HP: | 1/3 Hp |
Voltage: | 115 V | Speed: | 1075 rpm |
Service Factor: | 1 | Frame: | 48 |
Enclosure: | Open Air Over | Thermal Protection: | Thermally Protected |
Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
Current: | 5.30 A | Duty: | Continuous Air Over |
Insulation Class: | B | UL: | Recognized |
CSA: | Y | CE: | N |
Number of Speeds: | 4 |
Technical Specifications
Electrical Type: | Permanent Split Capacitor | Poles: | 6 |
Rotation: | Counterclockwise | Mounting: | Lug |
Motor Orientation: | Any | Drive End Bearing: | Sleeve |
Opp Drive End Bearing: | Sleeve | Frame Material: | Rolled Steel |
Shaft Type: | Flat | Overall Length: | 8.31 in |
Frame Length: | 3.57 in | Shaft Diameter: | 0.500 in |
Shaft Extension: | 4.00 in |
General Specifications
UPC: | 815585023760 | Weight: | 12.80 LB |
Packaged Length: | 14.12 IN | Packaged Width: | 10.88 IN |
Packaged Height: | 9.94 IN | Country of Origin: | Mexico |
