Product Overview

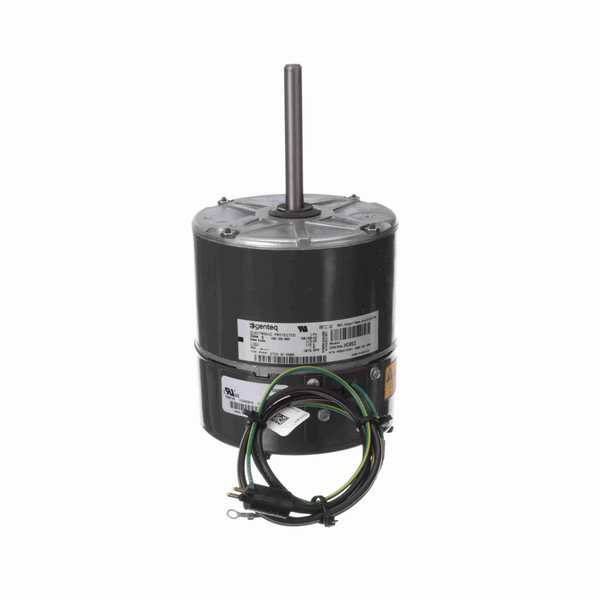

Genteq 5R005 Refrigeration Motor 1/3 HP 1 Ph 60 Hz 115 V 1075 RPM 1 Speed 48 Frame
KEY FEATURES
- ARKTIC 142 - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26.5 Lead Length with Molded Plug
- Belly Band
General Specifications
| UPC: | 815585024743 | Weight: | 12.25 LB |
| Packaged Length: | 14.12 IN | Packaged Width: | 6.38 IN |
| Packaged Height: | 6.5 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 1/3 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 5.8 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous Air Over | Insulation Class: | B |
| Frame: | 48 | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Electronically Commutated Motor | Poles: | 12 |
| Rotation: | Counterclockwise | Mounting: | Extended Studs |
| Motor Orientation: | Hor | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Overall Length: | 9.91 in |
| Frame Length: | 3.07 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 3.92 in | Thru-bolts Extension: | 0.14 in |
