Product Overview

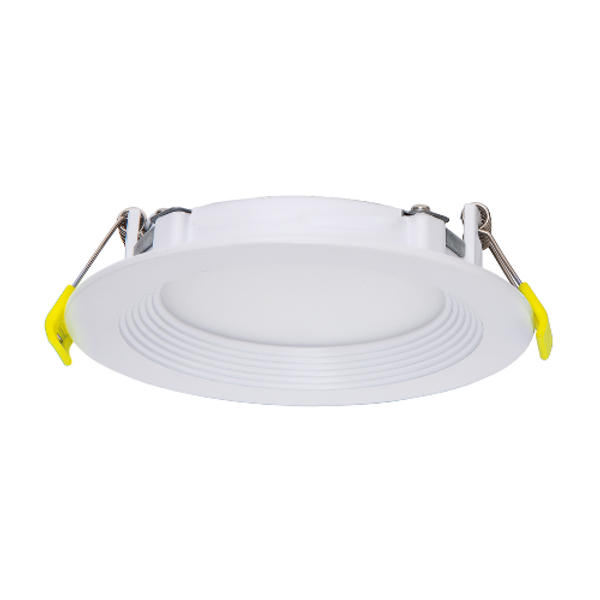

Halco 89107 4" ProLED Direct Fit Slim Downlight 10W 650lm CCT Selectable Baffle Trim DFDLS4-10-CS-BT
Halco_SlimDownlight_Sellsheet_19063_051819.pdf (halcolighting.com)
| Applications | RESIDENTIAL RECESSED LIGHTING |
| Average Life (Hrs) | 50,000 |
| Beam Angle | Flood |
| Beam Spread | 120 |
| Brand | ProLED |
| CRI | 90 |
| CSA | NO |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimmable | YES |
| ENERGY STAR | YES |
| Equivalent Wattage | 60 |
| Finish | White |
| Freight Class | 110 |
| HTS code | 9405406000 |
| Initial Lumens | 750 |
| Inner Carton Quantity | 1 |
| Input Current (Amps) | 0.1 |
| Input Frequency (Hz) | 60 Hz |
| Markets | Residential |
| Master Carton Quantity | 20 |
| NMFC Code | 109850-03 |
| Prod Code | DFDSL4-10-CS-BT |
| Product Category | LED FIXTURES |
| Product Description | ProLED Select Direct Fit Slim Downlight 4 10W 650lm CCT Selectable Baffle Trim |
| Product Number | 89107 |
| Voltage (V) | 120 |
| Warranty (Yrs) | 5 |
| Wattage (W) | 10 |
| ETL | YES |
| Footnotes 1 | This luminaire is intended for use on Class 2 circuits only. Use only on low voltage circuits with output ranges identified in specifications. Luminaire may be dimmed using analog dimmers and magnetic transformers. May not be compatible with all dimmers and/or transformers and should be tested in application for compatibility prior to full installations on circuits using such devices. |
| Footnotes 2 | Caution: Risk of electric shock. Never disassemble or modify the LED, no user serviceable parts inside. To avoid burns, do not touch the LED during operation and allow to cool completely after switching off. This device is not intended for use in emergency exit fixtures. This device complies with Part 18 of the FCC rules. This product may cause interference with other devices. If interference occurs, change the location of the products involved. |
| Footnotes 3 | Dimmable |
| Footnotes 5 | Luminaire is UL Listed for Wet Locations. |
| Freight Class | 110 |
| IP Rating | IP65 |
| Maximum Ambient Temperature (C) | 40C |
| NMFC Code | 109850-03 |
| Power Factor | 0.9 |
| Prod Code | DFDSL4-10-CS-BT |
| RoHS Compliant | YES |
| UL | NO |
| UNSPSC | 39112102 |
| UPC Code | 807154891078 |
| Warning 1 | Risk of electric shock |
| Warning 2 | Never disassemble or modify the LEDs |
| Warning 3 | To avoid burns, do not touch the LEDs during operation and allow to cool completely after switching off. |
| Warning 4 | This luminaire is not intended for emergency exit use. |
| Warning 5 | If this product causes interference with other devices, change the location of the products involved. |
| Warning 6 | Verify that supply voltage is correct by comparing it with the luminaire label information |
| Warning 7 | All wiring connections should be capped with UL approved wire connectors |
| Warning 8 | Suitable for Wet Location |
| Weight (lbs) | 1.1 |
| cUL | No |
