Product Overview

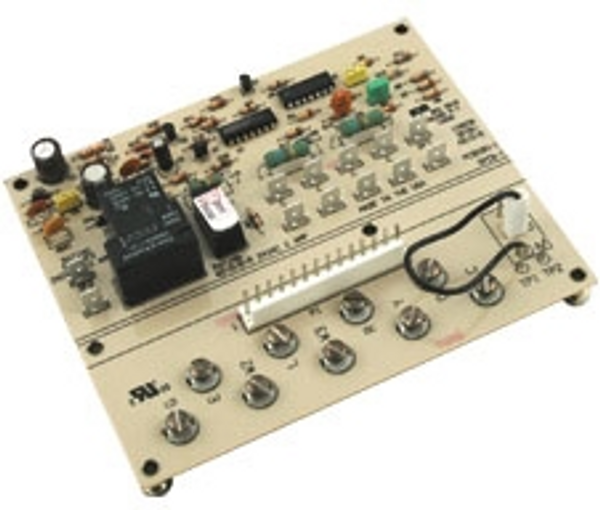

ICM ICM320 Heat Pump Defrost Control Board Replaces Cnt02898 92n83 Hk32fa006
Part Description:
- Heat Pump Defrost Control Board
- Item Defrost Control Board
- Size 5 Inch Length x 6 Inch Width x 1.25 Inch Height
- Mounting Type Surface Mount Using (4) #6 or #8 Screw or Plastic Standoff
- Used On Item Heat Pump
- Applicable Standard UL (Canada and US)
- Voltage Rating 18 to 30 Volt AC at 50/60 Hertz
- Power Consumption 1 Watt Maximum
- Output Configuration 2 Amp at 24 Volt AC DPST/NO Relay (Reversing Solenoid Valve/Defrost Relay Coil), 10 Amp at 240 Volt AC SPST/NC Relay (Outdoor Fan)
- Defrost Time 10 Minute Fixed
- Interval Time Between Defrost 30/50/90 Minute Pin-Selectable
Part Number: ICM320
Features / Benefits
- Low Cost, Time and Temperature Defrost
- Time and Temperature Terminate
- Test Pins Reduce Test Times by 256X
- Stable Pin Post Construction
- Made in USA
