Product Overview

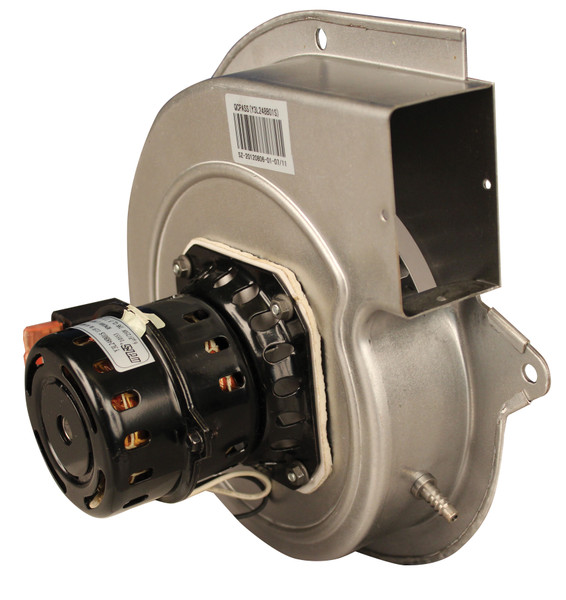

Mars 10553 Draft Induce Blower Replaces Goodman 0131M00002P
Motor Type
PSC
Enclosure
Open
H.P. (Max.)
1/50
Voltage
115
Speeds
1
Hz
60
Rotation
CW
RPM Range
3000
NEMA Frame Size
2.6"/65mm
Phase
Single
Standards
CUL
FLA
0.4
Bearing
Ball
Shaft Length Inches
3.85
Shaft Dia Inches
0.3
Thermal Protection
BR-A1D150
Ambient Deg C
60
Ins. Class
Class F
Capacitor Included
Yes
Capacitor Rating
2/250V
Brand
MARS
Pack Qty
1
Case Qty
1
Pallet Qty
64
Length
12.50 in.
Width
10.70 in.
Height
10.90 in.
Weight
4.8000 lbs
Harmonized Tariff Code
8501104020
UPC
685744105534
Country of Origin Code
CN
Country of Origin Name
China
