Product Overview

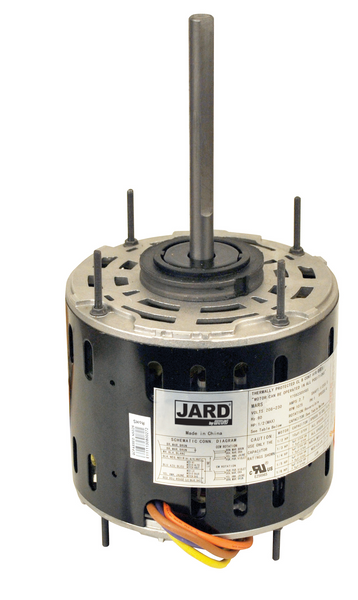

Mars 22466 1/5-3/4 HP Condenser Fan Motor 115V Direct Drive 1075 RPM
Motor Type
PSC
Enclosure
OAO
H.P. (Max.)
3/4
Voltage
115
Multi-Rated H.P.
1/5-3/4
Speeds
4
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
8.5
Mount
All Angle
Bearing
Ball
Shaft Length Inches
5.8
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
20/10/370
Brand
JARD
Pack Qty
1
Case Qty
1
Pallet Qty
80
Length
14.80 in.
Width
6.60 in.
Height
7.50 in.
Weight
19.5000 lbs
Harmonized Tariff Code
8501404040
UPC
685744224662
Country of Origin Code
CN
Country of Origin Name
China
