Product Overview

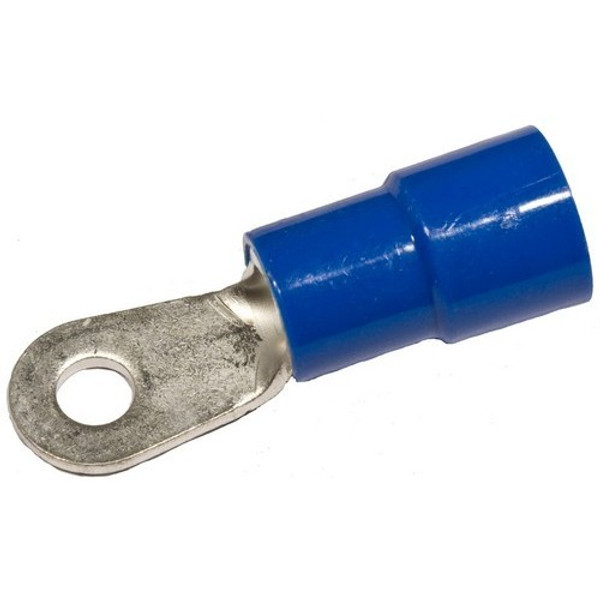

Nylon Insulated Ring Terminals - 6AWG Wire, 1/2" Stud - Nylon Insulated ring Terminals for electrical Wiring.
Nylon Insulated Ring Terminals - 6AWG Wire, 1/2" Stud features include:
- Ring Terminals are Nylon Insulated
- Color Coded insulation for easy identification
- Manufactured from High Strength Electrolytic Copper Alloy
- Electro-Tin Plated for corrosion resistance
- Easy Entry Expanded Insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Terminal Barrel has Brazed Seam
- Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
- 221°F (105°C) 600 Volts Max
- Maximum Electric Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp
- cULus Listed
- Order Qty of 100 = 1 Bag of 100
Below is more info on our Nylon Insulated Ring Terminals - 6AWG Wire, 1/2" Stud
