Product Overview

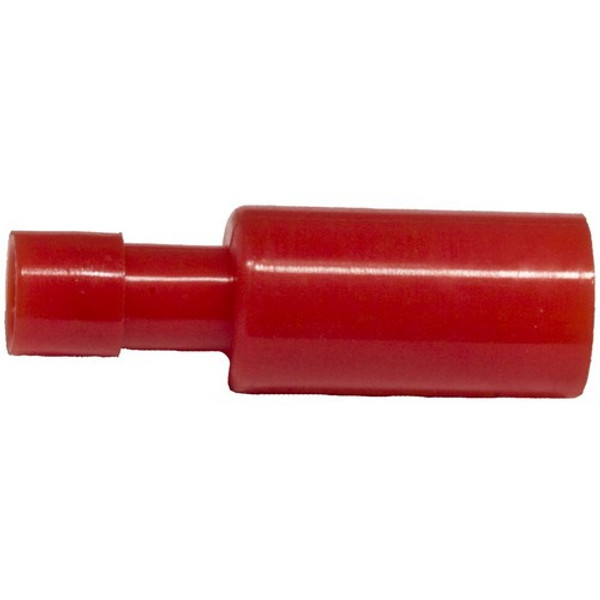

Nylon Fully Insulated Double Crimp Bullet Disconnects - 22-16 Wire, .157 Bullet - These Nylon Bullet Disconnects are Fully Insulated.
Nylon Fully Insulated Double Crimp Bullet Disconnects - 22-16 Wire, .157 Bullet features include:
- Nylon Fully Insulated Bullet Disconnects in .157 diameter
- Color Coded insulation for easy identification
- Manufactured from High Strength Brass
- Electro-Tin Plated for corrosion resistance
- Easy Entry Expanded Insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
- Terminal Barrel has Butted Seam
- Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
- 221°F (105°C) 600 Volts Max
- Maximum Electric Current: 22 AWG - 3 Amp, 20 AWG - 4 Amp, 18 AWG - 7 Amp, 16 AWG - 10 Amp, 14 AWG - 15 Amp, 12 AWG - 20 Amp, 10 AWG - 24 Amp
- cULus Listed
- Dimension Measurements = Inches
- Order Qty of 100 = 1 Bag of 100
Below is more info on our Nylon Fully Insulated Double Crimp Bullet Disconnects - 22-16 Wire, .157 Bullet
