Product Overview

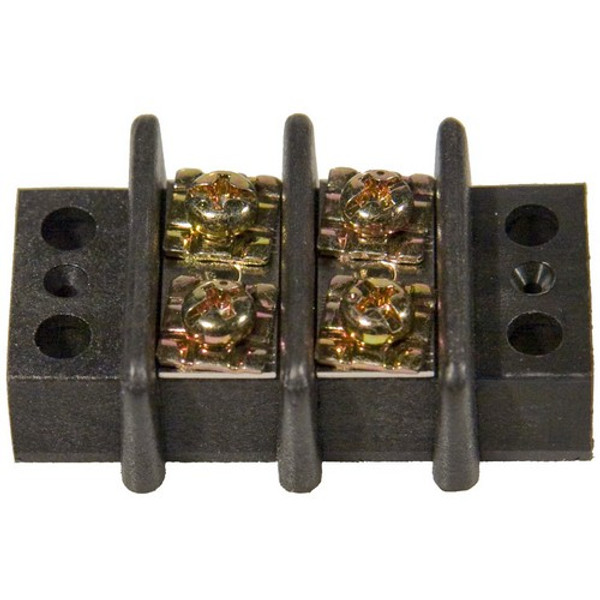

Terminal Strips 2 Pole - Nylon Insulated Terminal Strips avoid splicing and save time.
Terminal Strips 2 Pole features include:
- Nylon insulated terminal strips are popular to alternative splicing
- High density circuitry can be attained to conserve space
- Rated: 30A UL 300VAC CSA 600VAC
- .55 ” Center Spacing
- Nylon Insulation Withstands Voltage: AC 2000V/min
- Insulation Resistance: 1000M or More at DC500V
- Using Temperature Range: -40°F to 248°F (-40°C to 120°C)
- Screw Torque Value: 18 Kg-cm
- Wire Range Awg: 12-22 Str
- Insulator Body: Plastic Nylon 66 (UL 94V-0)
- Brass Tin Plated Terminals 0.8t
- Terminal Screws: M4 Nickel Plated Brass
- cURus/CSA Listed
- Dimension Measurements = Inches
- (Bulk) Order Qty of 1 = 1 Piece
Below is more info on our Terminal Strips 2 Pole
