Product Overview

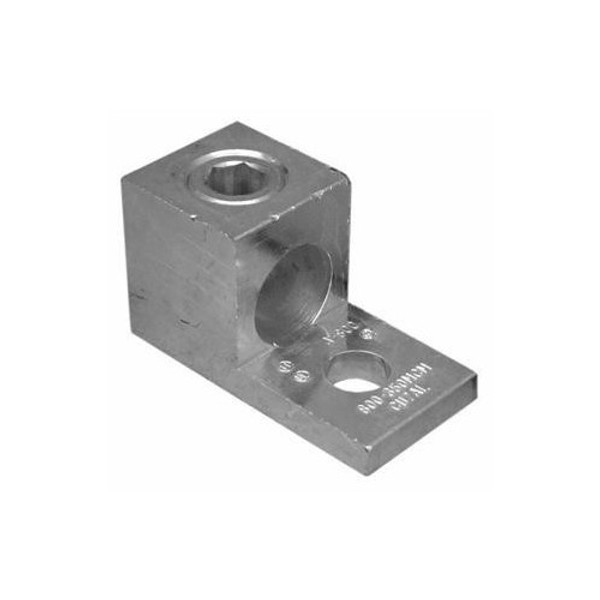

Aluminum Mechanical Lugs One Conductor 800MCM-300MCM - One Hole Mount - Dual-Rated and Reusable One Hole Aluminum Conductor Lug
Aluminum Mechanical Lugs One Conductor 800MCM-300MCM - One Hole Mount features include:
- One Hole Aluminum Mechanical Lug is manufactured from High Strength 6061-T6 Aluminum Alloy to insure both maximum strength and conductivity
- AL9CU Dual Rated for both Copper and Aluminum Conductors
- Electro-Tin Plated to provide low contact resistance and protection against corrosion
- Assembly can be made with only a screwdriver or allen wrench and they are re-usable
- 90712~90718 have slotted screws
- One Hole Aluminum Mechanical Lug is rated 600V 194°F (90°C)
- UL486B/CSA Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
Below is more info on our Aluminum Mechanical Lugs One Conductor - One Hole Mount 800MCM-300MCM
