Product Overview

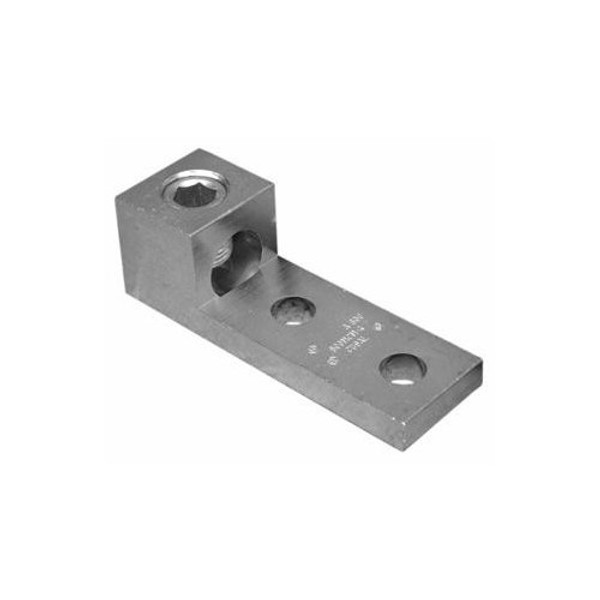

Aluminum Mechanical Lugs One Conductor - Two Hole Mount 350MCM-#6 Awg - This 1 Conductor Two Hole Aluminum Mechanical Lug resists corrosion.
Aluminum Mechanical Lugs One Conductor - Two Hole Mount 350MCM-#6 Awg features include:
- Aluminum Mechanical Lug manufactured from high strength 6061-T6 Aluminum Alloy to insure both maximum strength and conductivity
- AL9CU Dual Rated for both Copper and Aluminum Conductors
- Electro-tin plated to provide low contact resistance and protection against corrosion
- Assembly can be made with only a screwdriver or allen wrench and they are re-usable
- NEMA Standard Mounting Hole Drilling 1-3/4” Centers
- Rated 600V 194°F (90°C)
- Conductor lug is UL486B/CSA Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
Below is more info on our Aluminum Mechanical Lugs One Conductor - Two Hole Mount 350MCM-#6 Awg
