Product Overview

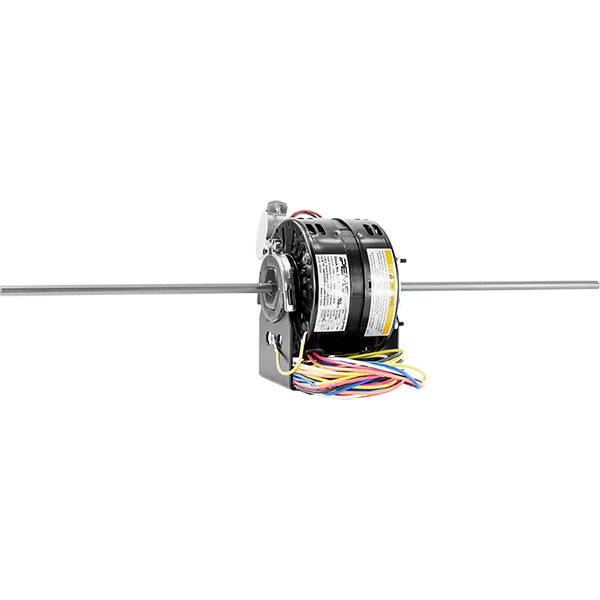

PEMS 93V1 Fan and Blower Motor Replaces Century 93 Fasco D293 Packard 40093 GE 5KCP29GK4566S
Description
[Electrical Type] Shaded Pole [HP] 1/10 ⓘ [KW] 0.07 [RPM] 1050 [Frame] 42Y [Enclosure] ODP ⓘ [Phase] Single [Voltage] 115 [Rotation] CWLE ⓘ [Overload] Auto [Material] Rolled Steel [Bearings Type] Sleeve / Sleeve [Bearings SE Type] Sleeve [Bearings OSE Type] Sleeve [Mounting] Resilient Base [Amperage] 3.2-2.3-1.7-1.4-.96 [Shaft Type] Flat [Shaft Extension] 10.000" x 0.375" x 10.000" [Shaft Diameter] 0.375"
- Ambient Temperature: 40°C
- Duty: Continuous Air Over
- Insulation Class: A
- Poles: 6
- Service Factor: 1.00
- Start Method: Across The Line
| Electrical Type | Shaded Pole |
|---|---|
| HP | 1/10 ⓘ |
| KW | 0.07 |
| Frame | 42Y |
| Enclosure | ODP ⓘ |
| Phase | Single |
| Voltage | 115 |
| Rotation | CWLE ⓘ |
| Overload | Auto |
| Material | Rolled Steel |
| Bearings Type | Sleeve / Sleeve |
| Mounting | Resilient Base |
| Amperage | 3.2-2.3-1.7-1.4-.96 |
| Bearings SE Type | Sleeve |
| Shaft Type | Flat |
| Bearings OSE Type | Sleeve |
| Shaft Extension | 10.000" x 0.375" x 10.000" |
| Shaft Diameter | 0.375" |
| CE | N |
|---|---|
| CSA | Y |
| UL | Recognized |
| Length | 26.5 |
|---|---|
| Width | 8.00"""" |
| Height | 9.00"""" |
| Weight | 11.11 LBS |
| Country of Origin | Mexico |
