Product Overview

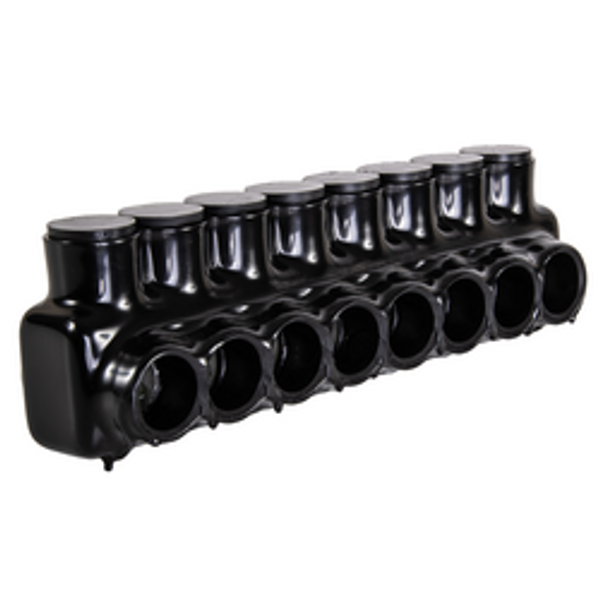

Polaris IPL350-8 8-Port Black Multi-Tap Pre-Insulated Connector 350 MCM – 6 AWG
Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- One-Side Wire Entry: Form secure connections between 8 conductors quickly using the single-side entry ports sized for wires between 350 MCM and 6 AWG
- Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Pre-filled Oxide Inhibitor: All 8 single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
| Voltage Rating | 600 V |
|---|---|
| Material | Aluminum |
| Finish | Plastisol Insulated |
| Color | Black |
| Pack Qty | 1 |
| GTIN | 662381914064 |
| UPC | 662381914064 |
| EAN | 662381914064 |
| UNSPSC | 39121409 |
| Origin Country | US |
| Certifications | cULus |
| Ul Standard | UL 486A/B |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 1028A |
| Cu Conductor Max Amp | 1314A |
| Conductor Cu Size Range | 350 MCM-6 AWG |
| Conductor Al Size Range | 350 MCM-6 AWG |
| Conductor Type | Copper, Aluminum |
| Temp Rating | 90C, AL9CU |
| Conductors Count | 8 |
| Hex Wrench Size | 5 |
| Env Temp | Cold Temperature rated to -45C |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Application | Splice, Tap |
| Max Torque | 400 |
